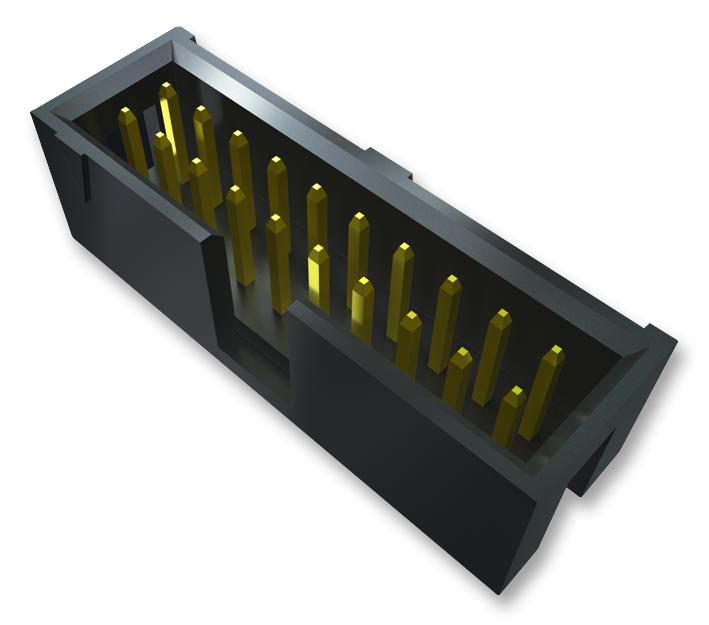

SAMTEC HTSS11702LD Shrouded Post Headers
The HTSS11702LD shrouded .025 inch square post headers are high-quality electrical connectors designed for through-hole mounting on printed circuit boards. These connectors feature gold flash on post contacts for enhanced conductivity and corrosion resistance, with matte tin finishes on tails for durable solderability. They support typical operating temperature ranges from -55°C to +105°C, withstand voltages up to 2200 VRMS, and are available in multiple sizes and configurations including double row and polarization options. Engineered for reliable connections in industrial and electronic applications, these headers ensure robust and long-lasting performance in demanding environments.
SAMTEC HTSS11702LD Shrouded Post Headers Specifications:
- Contact Material: Phosphor Bronze
- Finish: Matte Tin on Tail, Gold Flash on Post
- Insulator Material: Polyester (HTSS series)
- Operating Temperature Range: -55°C to +105°C
- Voltage Rating: Up to 2200 VRMS
- Pitch: 2.54 mm (.100 inch)
- Number of Positions: Multiple configurations, including single and double row
- Mounting Type: Through-hole
- Insulation Resistance: 5000 MΩ minimum
- Lead-free Solderable: Yes
- Max Co-planarity: 0.006 inches (0.15 mm)
- Durability: Designed for high-reliability connections in industrial use
Buy the Buy Samtec HTSS11702LD Part Number HTSS11702LD Online
Purchase the Samtec HTSS11702LD shrouded post headers online today for dependable and durable PCB connections. Featuring gold flash on posts for optimal conductivity, matte tin finishes for solderability, and suitable for high-temperature environments up to 105°C, these connectors are ideal for industrial electronics. They support voltages up to 2200 VRMS and ensure maximum mechanical stability with precise co-planarity. Our easy online ordering process guarantees quick delivery, ensuring your project maintains high reliability with top-quality components designed for demanding applications.
Get Samtec HTSS11702LD today—built for precision and long-lasting durability in industrial and electronic applications.
Frequently Asked Questions
Where can I buy SAMTEC HTSS11702LD?
You can click on the BUY or RFQ button to purchase HTSS11702LD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part HTSS11702LD?
You can download the HTSS11702LD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of HTSS11702LD?
SAMTEC
