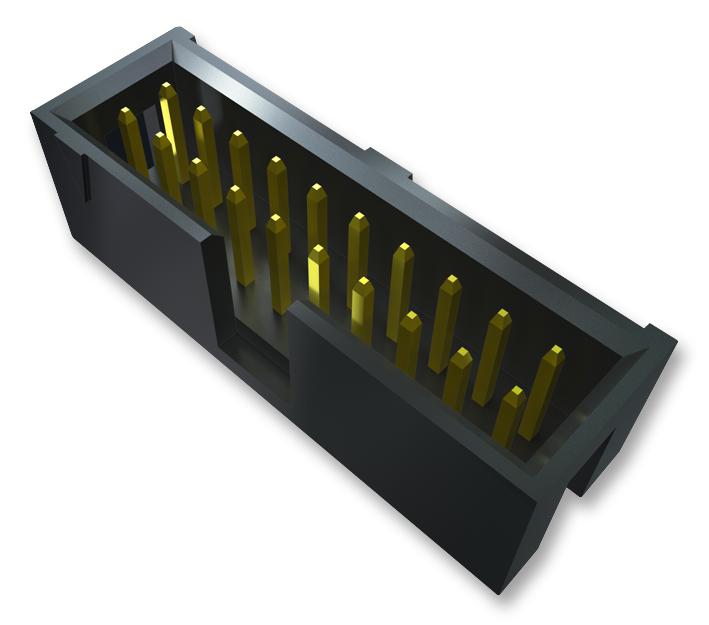

SAMTEC HTSS12002GD Shrouded Post Header
The HTSS12002GD is a shrouded .025 inch square post header designed for reliable power and signal connections in electronic assemblies. Featuring gold flash on the post and matte tin finish on tails, it offers excellent corrosion resistance and durable performance. With a 2.54 mm pitch and through-hole mounting, it supports high operating temperatures between -55°C and +105°C. The connector is compliant with industry standards, has an insulation resistance of a minimum 5000 MΩ, and is suitable for surface mount applications. It ensures mechanical stability and precise alignment with optional locking and polarization features, making it ideal for high-reliability electronic systems.
SAMTEC HTSS12002GD Shrouded Post Header Specifications:
- Post Material: Phosphor Bronze with Gold flash on post
- Finish: Matte Tin on tails
- Pitch: 2.54 mm (.100 inch)
- Pin Count: 2, 3, 4, 6, 8, 10, 12, 13, 15, 17, 20, 25, 32, 36
- Temperature Range: -55°C to +105°C
- Insulation Resistance: Minimum 5000 MΩ
- Current Rating: Not specified
- Mounting Style: Through-hole, Surface Mount
- Contact Plating: Gold flash on post; Matte Tin on tails
- Operating Voltage: 2200 VRMS (specific sizes)
- Mechanical Stability: Optional locking leads, polarized design
- Compatibility: Supports high-reliability applications with precision connection
- Certifications: Industry standard compliance, UL, CSA (not specified)
Buy the Buy Sample Corporation Shrouded 025 Inch Post Header Part Number HTSS12002GD Online
Order the Sample Corporation Shrouded Post Header HTSS12002GD online today to ensure secure electrical connections in your electronic projects. This connector features gold flash plating on the post for excellent corrosion resistance and a matte tin finish on tails for durability. Its 2.54 mm pitch, through-hole, and surface-mount compatibility make it versatile for various PCB designs. Designed for high-reliability applications, it operates efficiently within temperatures from -55°C to +105°C, supporting your critical electronic systems with robust mechanical stability and precise alignment. Purchase now and enhance your assembly reliability.
Buy Sample Corporation HTSS12002GD now and experience unmatched reliability and high-performance connection solutions for your electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC HTSS12002GD?
You can click on the BUY or RFQ button to purchase HTSS12002GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part HTSS12002GD?
You can download the HTSS12002GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of HTSS12002GD?
SAMTEC
