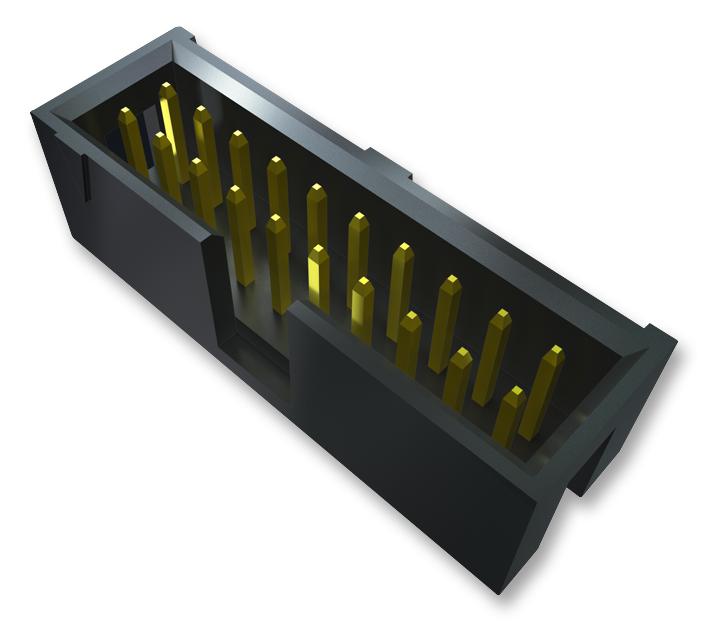

SAMTEC HTSS12501GD Shrouded IDC Header
The HTSS125-01-GD is a shrouded IDC header designed for reliable multi-position connections in electronic assemblies. Featuring black glass-filled polyester insulator material, phosphor bronze terminals with gold or tin plating over nickel, and a temperature range of -55°C to +125°C with gold and -55°C to +105°C with tin, it complies with UL 94V-0 flammability standards. It withstands 4000 VRMS voltage and offers lead-free solderability. Suitable for SMT applications, it ensures high insulation resistance of at least 5000 MΩ, making it ideal for compact, reliable electronics use.
SAMTEC HTSS12501GD Shrouded IDC Header Specifications:
- Insulator Material: Black Glass Filled Polyester
- Terminal Material: Phosphor Bronze
- Plating: Au or Sn over 50 μin Ni
- Insulation Resistance: 5000 MΩ min
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Flammability Rating: UL 94V-0
- Withstanding Voltage: 4000 VRMS
- Lead-Free Solderable: Yes (HTSS)
- SMT Lead Coplanarity: 0.15 mm
- Contact Resistance: Not specified
- Dimensions: No. of positions varies, length dimension based on configuration
- RoHS Compliant: Yes
Buy the Buy Samtec HTSS125-01-GD Part Number HTSS125-01-GD Online
Purchase the Samtec HTSS125-01-GD shrouded IDC header online today to ensure a secure, reliable connection with excellent insulation resistance. Designed for high-performance electronics, it features a black glass-filled polyester insulator, phosphor bronze terminals with gold or tin plating over nickel, and operates reliably within temperatures from -55°C to +125°C. Its UL 94V-0 flammability rating guarantees safety, while the lead-free construction allows easy soldering. Ideal for compact electronic assemblies, it offers high durability and RoHS compliance, making it a perfect choice for modern device manufacturing.
Buy Samtec HTSS125-01-GD now and experience reliable multi-pin connections with superior durability and high-temperature performance.
Frequently Asked Questions
Where can I buy SAMTEC HTSS12501GD?
You can click on the BUY or RFQ button to purchase HTSS12501GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part HTSS12501GD?
You can download the HTSS12501GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of HTSS12501GD?
SAMTEC
