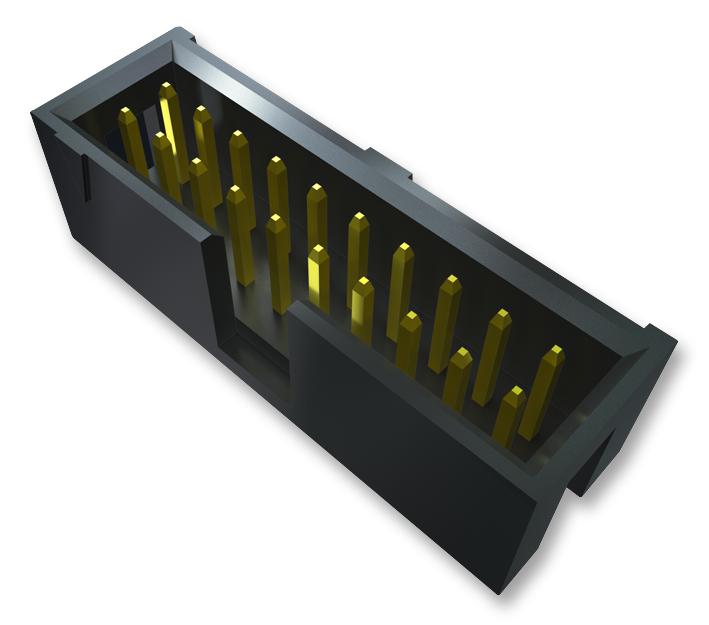

SAMTEC HTSS12502GD IDC Header
The shrouded IDC headers and stackers are designed for reliable, snap-in connection with IDC cables, featuring insulating material made of black glass-filled polyester and contact material of phosphor bronze. They support operating temperatures from -55°C to +125°C with gold plating and -55°C to +105°C with tin plating, withstanding voltage of 4000 VRMS. These RoHS-compliant connectors have a UL 94V-0 flammability rating, are lead-free solderable, and available in various sizes and configurations for versatile industrial wiring and electronic applications, ensuring durability and electrical integrity.
SAMTEC HTSS12502GD IDC Header Specifications:
- Insulator Material: Black Glass Filled Polyester
- Terminal Material: Phosphor Bronze
- Plating: Au or Sn over 50 um Ni
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Flammability Rating: UL 94V-0
- Withstanding Voltage: 4000 VRMS
- RoHS Compliant: Yes
- Processing: Lead-Free Solderable
- Coplanarity: (0,15 mm)
- Body Height: 1.4 mm
- Pin Compatibility: Works with IDC cables, various sizes available
Buy the Samtec HTSS – Reliable IDC Connectors for Industrial Applications
Purchase your Samtec IDC Header series online today for dependable, high-performance connections in industrial wiring and electronic assemblies. These connectors feature premium materials like black glass-filled polyester insulators and phosphor bronze contacts with optional gold or tin plating. Supported by UL and RoHS certification, they operate safely over a wide temperature range from -55°C to +125°C, withstanding voltages up to 4000 VRMS. Easy to solder with lead-free processing, ensure your projects achieve durability and electrical reliability with Samtec's trusted IDC headers.
Order your Samtec Series HTSS IDC connectors today and enhance your industrial wiring projects with dependable, high-quality connection solutions.
Frequently Asked Questions
Where can I buy SAMTEC HTSS12502GD?
You can click on the BUY or RFQ button to purchase HTSS12502GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part HTSS12502GD?
You can download the HTSS12502GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of HTSS12502GD?
SAMTEC
