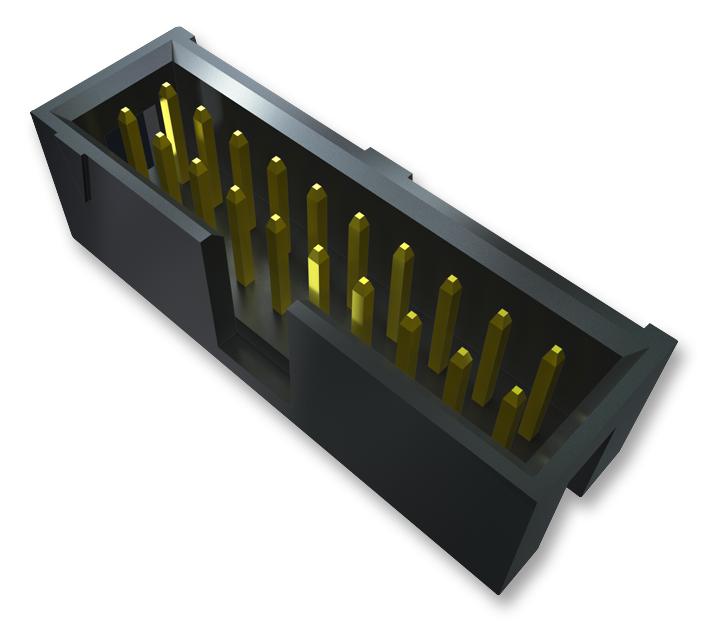

SAMTEC HTSS13201GD Shrouded Connector
The HTSS13201GD is a high-quality shrouded connector featuring a 0.025-inch square post head design suitable for through-hole mounting. It offers a double-row configuration with gold flash on the post for enhanced conductivity and corrosion resistance. Made from black glass-filled polyester and matte tin-plated terminals, it operates reliably within temperature ranges from -55°C to +105°C. This connector is ideal for compact electronic applications, providing a secure, solderable connection with excellent insulation resistance and withstand voltage of up to 2200 VRMS. Suitable for surface mount and through-hole configurations, it ensures durability and precision in high-density assemblies.
SAMTEC HTSS13201GD Shrouded Connector Specifications:
- Post Head Size: 0.025 inches square
- Pitch: 2.54 mm (0.100 inches)
- Configuration: Double Row
- Material: Black glass-filled polyester insulator
- Terminal Material: Phosphor Bronze with Matte Tin or Gold plating
- Operating Temperature Range: -55°C to +105°C
- Insulation Resistance: 5000 MΩ minimum
- Withstanding Voltage: Up to 2200 VRMS
- Surface Finish: Matte Tin on tail, Gold flash on post
- Mounting Type: Through-hole and surface mount compatible
- Lead-Free Solderable: Yes
- Mechanical Stability: Suitable for high-density circuit boards with precise coplanarity
- Applicable Standards: UL, RoHS compliant, optional gold plating available
Buy the Buy Samtec HTSS13201GD Part Number HTSS13201GD Online
Order the Samtec HTSS13201GD shrouded connector online today and enjoy a reliable, high-density connection solution for your electronic projects. Its 0.025-inch square post profile, double-row configuration, and gold flash plating ensure excellent conductivity and corrosion resistance. Designed for through-hole and surface mount applications, it features a temperature range from -55°C to +105°C, high insulation resistance, and withstand voltage up to 2200 VRMS. Secure your assembly with this robust connector, ideal for demanding electronic and industrial environments, available with optional gold plating for enhanced performance.
Get Samtec HTSS13201GD today—built for precision, high-density applications, and long-lasting durability.
Frequently Asked Questions
Where can I buy SAMTEC HTSS13201GD?
You can click on the BUY or RFQ button to purchase HTSS13201GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part HTSS13201GD?
You can download the HTSS13201GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of HTSS13201GD?
SAMTEC
