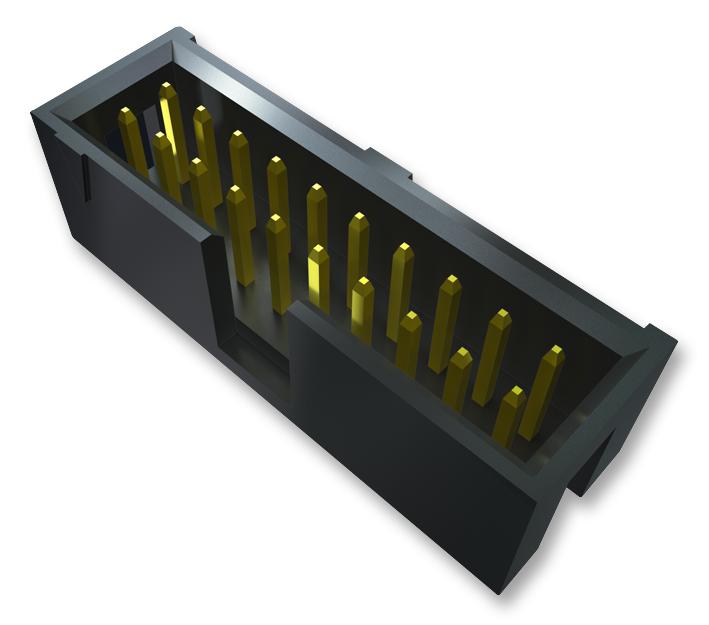

SAMTEC HTSS13202GD Double Row Connector
The HTSS13202GD is a high-quality, gold flash plated connector with a double row through-hole design, ideal for industrial applications. It features matte tin finish on tail and post, with Phosphor Bronze contacts rated for operating temperatures from -55°C to +105°C. The connector supports withstand voltage up to 2200 VRMS, is lead-free, and offers excellent insulation resistance of 5000 MO min. Its compact pitch of 2.54 mm ensures reliable and easy mounting in various electronic assemblies, making it suitable for demanding industrial and electronic industry environments.
SAMTEC HTSS13202GD Double Row Connector Specifications:
- Pitch: 2.54 mm (.100 inches)
- Contact Material: Phosphor Bronze
- Finish: Matte Tin on tail and Post, Gold flash on posts
- Temperature Rating: -55°C to +105°C
- Insulation Resistance: 5000 MO min
- Withstand Voltage: 2200 VRMS
- Number of Positions: Configurable, typically 2-20
- Lead-Free Solderable: Yes
- Operating Temp Range: -55°C to +105°C
- Mounting Style: Through-hole, Surface Mount
- Certifications: RoHS Compliant
Buy the Samtec HTSS13202GD – Reliable Double Row Connector for Industrial Applications
Secure your electronic projects with the Samtec HTSS13202GD connector, featuring platinum-grade plating, robust insulation, and high voltage resistance. Its precise 2.54 mm pitch ensures a stable connection in compact spaces. Designed for industrial and electronic applications, this connector offers excellent thermal stability, high insulation resistance, and lead-free construction. Easy to mount with through-hole design, it’s ideal for demanding environments requiring durability and reliability. Order online today and enhance your electronic assembly with trusted quality and performance.
Buy Samtec HTSS13202GD now and experience unmatched reliability and performance in industrial electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC HTSS13202GD?
You can click on the BUY or RFQ button to purchase HTSS13202GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part HTSS13202GD?
You can download the HTSS13202GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of HTSS13202GD?
SAMTEC
