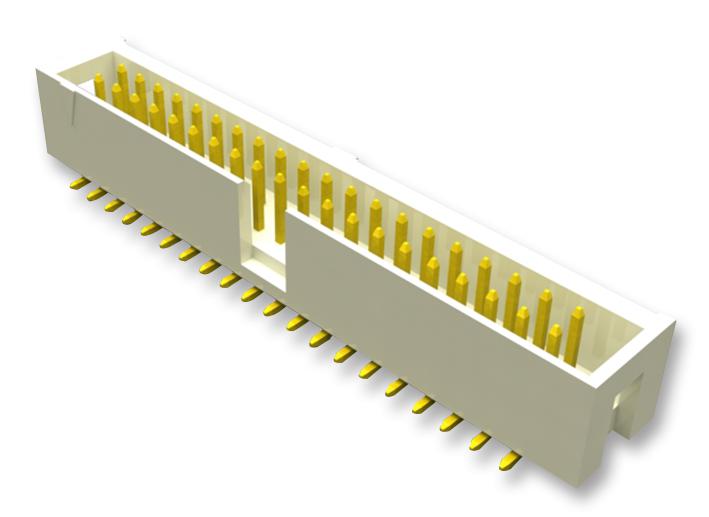

SAMTEC HTST10501LDV Shrouded Header
The HTST10501LDV is a shrouded surface-mount header designed for reliable board-to-board connections in electronic assemblies. Featuring gold and tin plating options, it supports operating temperatures from -55°C to +105°C, ensuring durability in various environments. With a current rating of up to 3.20A and a flammability rating of UL 94V-0, it provides safe and efficient connectivity. The header has high insulation resistance of 5000 MΩ minimum, a compact profile with 0.100'' spacing, and compatible with multiple series for versatile applications. Suitable for high-density configurations and easy to solder, it enhances electronic device reliability.
SAMTEC HTST10501LDV Shrouded Header Specifications:
- Operating Temperature Range: -55°C to +105°C
- Current Rating: 3.20A
- Insulation Resistance: 5000 MΩ min
- Flammability Rating: UL 94V-0
- Plating: Au over Ni or Sn
- Dimensions: 0.100 inch pitch, 2.54 mm, with various length options
- Body Material: High-temperature thermoplastic
- Voltage Withstanding: 4000 V
- Number of Positions: Varies (e.g., 8, 10, 12, 13)
- Seam: Standard gold and tin plating options
- Applications: Microcontroller, industrial equipment, automation systems
- Compatibility: Series includes SSW, SSQ, ESW, ESQ, SSM, BCS, and more
- Certifications: UL listed
Buy the Buy Samtec HTST10501LDV Part Number HTST10501LDV Online
Order the Samtec HTST10501LDV shrouded surface-mount header online today. Designed for reliable board-to-board connections, it features high insulation resistance, UL 94V-0 flammability rating, and withstands temperatures from -55°C to +105°C. Suitable for high-density applications, it supports up to 3.20A current and offers gold or tin plating options for corrosion resistance. Easy to solder and compatible with multiple series, it ensures long-term durability and optimal performance in electronic devices.
Get Samtec HTST10501LDV today—built for precision, high current capacity, and long-lasting durability in electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC HTST10501LDV?
You can click on the BUY or RFQ button to purchase HTST10501LDV from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part HTST10501LDV?
You can download the HTST10501LDV datasheet or visit the SAMTEC website for support.
Who is the manufacturer of HTST10501LDV?
SAMTEC
