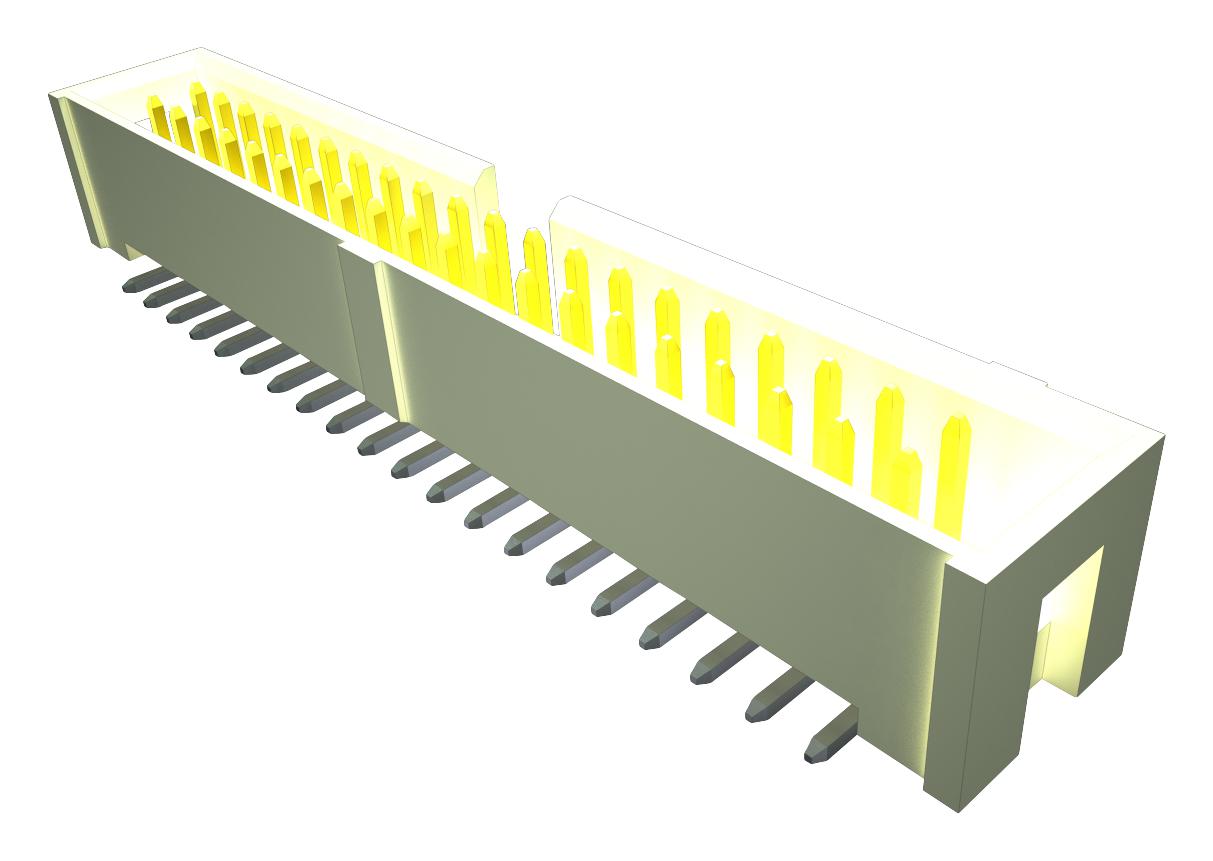

SAMTEC HTST10501LDVA IDC Header
Shrouded 0.025 inch square post IDC headers are designed for reliable board-to-board connections in industrial electronics. Featuring gold plating over phosphor bronze contacts, these headers support a temperature range from -85°C to +105°C and meet UL 94V-0 flammability standards. They are RoHS compliant and lead-free, with high insulation resistance and withstand voltage of 1000 VRMS. Suitable for applications requiring precise alignment, robust electrical contact, and high durability, these headers support wave soldering and are compatible with various samtec series for versatile industrial use.
SAMTEC HTST10501LDVA IDC Header Specifications:
- Flammability Rating: UL 94V-0
- Insulation Resistance: 1000 MΩ min
- Withstanding Voltage: 1000 VRMS
- Operating Temperature Range: -85°C to +105°C
- Contact Material: Phosphor Bronze
- Plating: Gold over nickel
- Lead-Free Solderable: Yes
- RoHS Compliant: Yes
- Insulator Material: Polyester
- Pin Count: 15, 17, 20, 25, 32, 36
- Contact Thickness: 0.025 inches
- Size: Square post, shrouded
- Match Series: SSW, SSQ, ESW, ESQ, SSM, BCS
- Alignment Pins: Yes
- Mechanical Stability Enhancements: Board spacers recommended
- Application: Industrial electronics, board-to-board connections
Buy the Samtec HTST – Reliable IDC Headers for Industrial Applications
Secure your industrial project with Samtec IDC Header series HTST 10501LDVA. Featuring gold-plated phosphor bronze contacts, robust insulation resistance, and operating temperature from -85°C to +105°C. These high-density connectors are RoHS compliant and support wave soldering for easy assembly, making them ideal for reliable board-to-board connections in industrial environments. Enhance your equipment’s durability and performance with trusted Samtec quality. Purchase online now for fast delivery and professional-grade connectivity solutions.
Order your Samtec HTST series 10501LDVA today and ensure your industrial electronics projects get dependable, high-quality connections with ease and precision.
Frequently Asked Questions
Where can I buy SAMTEC HTST10501LDVA?
You can click on the BUY or RFQ button to purchase HTST10501LDVA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part HTST10501LDVA?
You can download the HTST10501LDVA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of HTST10501LDVA?
SAMTEC
