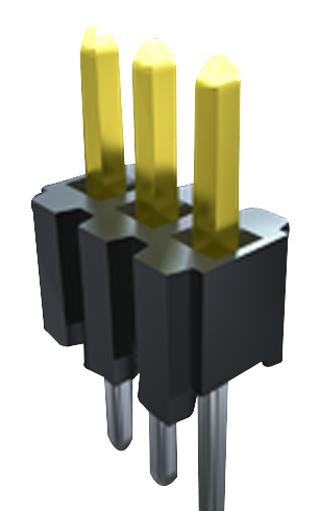

SAMTEC HTSW10223SMD Through-Hole Connector
The HTSW series features high-reliability, lead-free through-hole connectors suitable for industrial and electronic applications. These connectors are made from high-quality materials with options for gold or tin plating, and operate within temperature ranges from -55°C to +125°C depending on version. They provide voltage ratings up to 550 VAC and current ratings around 15.2 A per position, ensuring robust electrical performance. Their design includes various options like elevated right-angle and locking leads, making them adaptable to diverse assembly requirements. RoHS compliant and solderable, these connectors ensure durability and ease of installation in demanding environments.
SAMTEC HTSW10223SMD Through-Hole Connector Specifications:
- Material: High-quality thermoplastic insulator, Phosphor Bronze terminals
- Plating: Gold or Tin over Ni, 50 µin (1.27 µm)
- Operating Temperature Range: -55°C to +125°C
- Voltage Rating: Up to 550 VAC
- Current Rating: Approximately 15.2 A per position
- Connection Type: Through-hole, multiple contact options
- Available Options: Elevated right-angle, locking leads, various plating options
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Certifications: Compliant with industry standards
- Dimensions vary based on configuration, typical pin centers 2.54 mm (0.100 inch) and 5.08 mm (0.200 inch)
Buy the Samtec HTSW – Reliable Through-Hole Connectors for Industrial Applications
Discover the robust and versatile HTSW series connectors from Samtec, designed for demanding industrial and electronic applications. These high-quality, RoHS-compliant connectors feature either gold or tin plating and are rated for up to 550 VAC and 15.2 A per position. With options including elevated right-angle and locking leads, they ensure flexible integration into your assemblies. Easy to solder and built for durability, order online now to secure these reliable connectors, improving your project’s electrical performance and longevity with quick, hassle-free shipping.
Order your Samtec HTSW series connectors today and enhance your electronic assemblies with dependable, high-performance through-hole solutions.
Frequently Asked Questions
Where can I buy SAMTEC HTSW10223SMD?
You can click on the BUY or RFQ button to purchase HTSW10223SMD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part HTSW10223SMD?
You can download the HTSW10223SMD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of HTSW10223SMD?
SAMTEC
