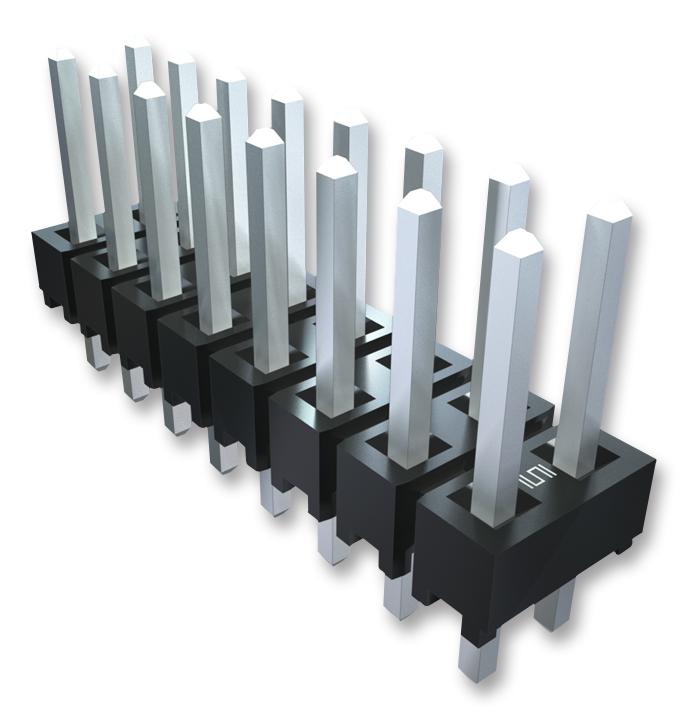

SAMTEC HTSW10311GD High-Temperature Terminal Headers
The HTSW series from Samtec features high-temperature terminal strip headers designed for reliable signal connections. These unshrouded through-hole headers have 0.025-inch (0.635mm) square posts compatible with various Samtec connector series. Available in single, dual, or triple-row configurations with a pitch of 2.54mm (0.1 inch), they support 1 to 50 contacts per row and are suitable for straight mounting. Made from phosphor bronze and natural liquid crystal polymer insulators, these connectors operate efficiently from -55°C to 125°C, meeting UL and CSA standards with optional locking features for extra security.
SAMTEC HTSW10311GD High-Temperature Terminal Headers Specifications:
- Pitch: 2.54mm (0.1 inch)
- Contact Material: Phosphor Bronze
- Insulator Material: Natural Liquid Crystal Polymer
- Post Size: 0.025 inches (0.635mm) square
- Number of Rows: Single, Dual, or Triple
- Contacts per Row: 1 to 50
- Temperature Range: -55°C to 125°C
- Standards: UL E111594, CSA 090871
- Orientation: Straight
- Locking Feature: Optional
Buy the Buy Samtec HTSW High-Temperature Terminal Headers Part Number HTSW10311GD Online
Purchase Samtec high-temperature terminal headers online today for dependable signal connections in industrial equipment. These connectors feature a 2.54mm pitch, are constructed with durable phosphor bronze contacts, and operate reliably from -55°C to 125°C. Available in single, dual, or triple-row configurations, they support 1 to 50 contacts per row. Made with natural liquid crystal polymer insulators and optional locking features, these headers meet UL and CSA standards, providing top-quality, secure, and versatile performance for your projects.
Buy Samtec HTSW high-temperature terminal headers now and ensure reliable, secure connections in demanding industrial environments.
Frequently Asked Questions
Where can I buy SAMTEC HTSW10311GD?
You can click on the BUY or RFQ button to purchase HTSW10311GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part HTSW10311GD?
You can download the HTSW10311GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of HTSW10311GD?
SAMTEC
