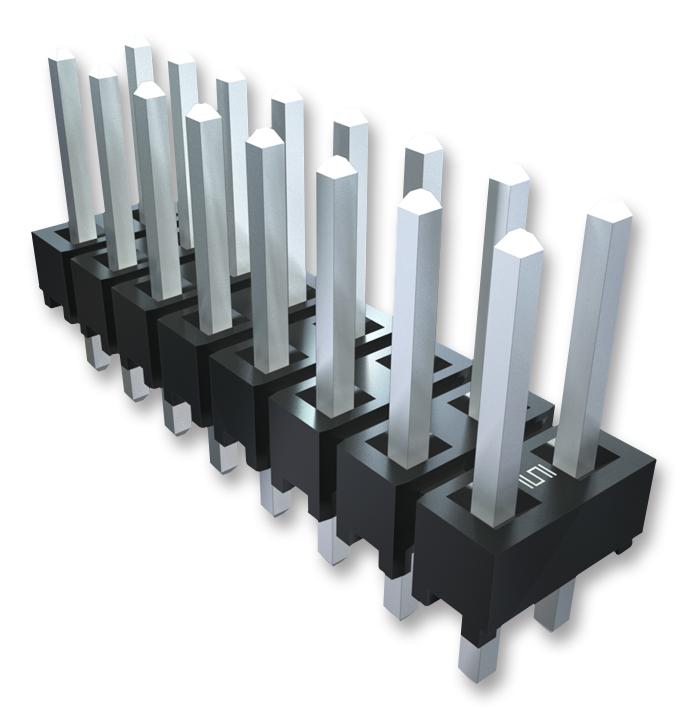

SAMTEC HTSW10621TS High-Temperature Terminal Headers
The HTSW series from Samtec features high-temperature terminal strip headers designed for dependable signal connections in industrial environments. These unshrouded through-hole headers have 0.025-inch (0.635 mm) square posts, compatible with Samtec series like SSW, SSQ, SSM, ESW, ESQ, BCS, and others. Available in single, dual, or triple rows with various pin counts, they operate from -55°C to 105°C, made from phosphor bronze with matte tin plating, and feature a liquid crystal polymer insulator. Locking options enhance security, making them ideal for demanding industrial applications.
SAMTEC HTSW10621TS High-Temperature Terminal Headers Specifications:
- Post Size: 0.025 inches (0.635 mm) square
- Material: Phosphor bronze with matte tin plating
- Inulator: Liquid crystal polymer
- Temperature Range: -55°C to 105°C
- Voltage Rating: Up to 550 VAC
- Series Compatibility: SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, SMSS
- Configurations: Single, dual, triple rows
- Pin Count: Various options depending on series
- Orientation: Straight and right-angle versions available
- Locking Option: Available
- Standards: UL Listed, CSA Certified
Buy the Samtec Series HTSW High-Temperature Terminal Header: HTSW10621TS
Order the Samtec HTSW high-temperature terminal headers online today to secure dependable signal connections in industrial and automation applications. Featuring 0.025-inch posts made from phosphor bronze with matte tin plating, these headers operate from -55°C to 105°C and are compatible with a wide range of Samtec series. Their liquid crystal polymer insulator provides excellent durability, and optional locking features add security. Easy to install, these headers meet UL and CSA standards, ensuring safety and reliability for your industrial projects.
Buy Samtec HTSW10621TS high-temperature terminal headers now and ensure reliable signal connections in demanding industrial environments.
Frequently Asked Questions
Where can I buy SAMTEC HTSW10621TS?
You can click on the BUY or RFQ button to purchase HTSW10621TS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part HTSW10621TS?
You can download the HTSW10621TS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of HTSW10621TS?
SAMTEC
