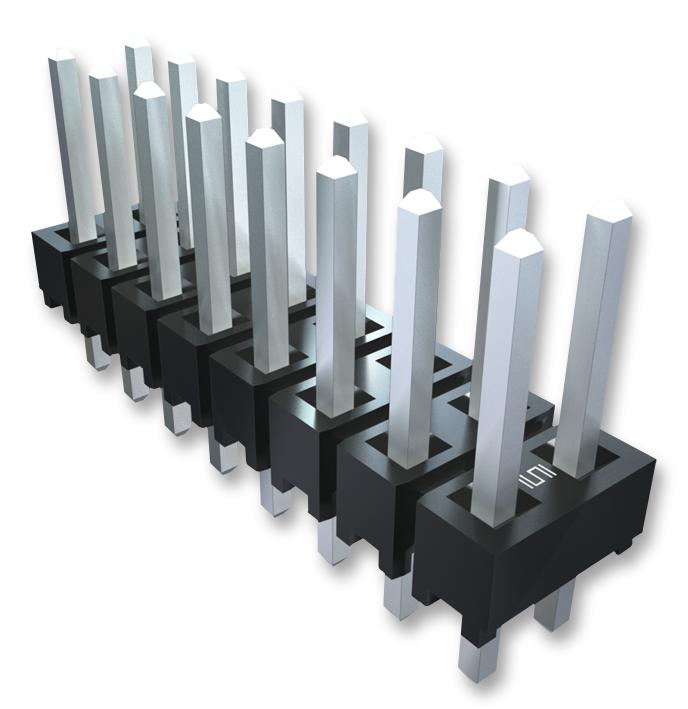

SAMTEC HTSW10807TT Terminal Header
The HTSW series from Samtec are high-temperature terminal strip headers designed for dependable signal connections in industrial applications. These unshrouded, through-hole headers feature a 2.54mm pitch and are available in single, dual, or triple row configurations with various pin counts. Made from phosphor bronze and plated with matte tin, they operate within -55°C to 105°C. Compatible with multiple Samtec series connectors like SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, SMSS, they include optional locking features for secure connections and comply with UL and CSA standards, ensuring reliability in demanding environments.
SAMTEC HTSW10807TT Terminal Header Specifications:
- Pitch: 2.54 mm
- Operating Temperature Range: -55°C to +105°C
- Material: Phosphor Bronze
- Plating: Matte Tin
- Series Compatibility: SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, SMSS
- Pin Count: Various (single, dual, triple row options)
- Post Size: 0.635 mm square
- Certifications: UL Listed, CSA Certified
- Mounting Type: Through-hole
- Locking Features: Optional for secure connection
Buy the Buy Samtec HTSW Series Part Number HTSW10807TT Online
Purchase the Samtec HTSW terminal header series online to benefit from high-temperature durability and secure connections. These headers feature a 2.54mm pitch, preciseness in manufacturing, and wide compatibility with various Samtec connector series. Made from durable phosphor bronze with matte tin plating, they operate efficiently from -55°C to 105°C. Optional locking features provide added security in your connections. Ideal for industrial environments, these headers meet UL and CSA standards, ensuring safety, reliability, and long-term performance in demanding applications.
Buy Samtec HTSW10807TT now and ensure reliable high-temperature signal connections for industrial applications.
Frequently Asked Questions
Where can I buy SAMTEC HTSW10807TT?
You can click on the BUY or RFQ button to purchase HTSW10807TT from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part HTSW10807TT?
You can download the HTSW10807TT datasheet or visit the SAMTEC website for support.
Who is the manufacturer of HTSW10807TT?
SAMTEC
