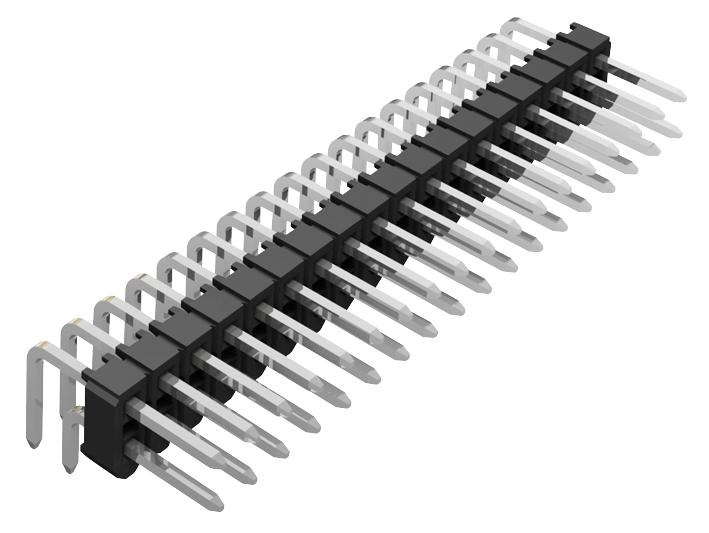

SAMTEC HTSW11422GSRA High-Temperature Terminal Header
The HTSW series from Samtec are high-temperature terminal strip headers designed for reliable electrical connections. These unshrouded through-hole headers feature 0.025-inch (0.635 mm) square posts and are compatible with various Samtec connector series including SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, and SMSS. They are available in single, dual, or triple row configurations with optional locking features. The connectors have a pitch spacing of 2.54 mm and are aligned for right-angle mountings, with contact counts ranging from 2 to 25 per row. Constructed with phosphor bronze terminals and natural liquid crystal polymer insulators, they operate reliably in temperatures from -55°C to 125°C. These connectors meet UL E111594 and CSA 090871 standards, ensuring safety and quality.
SAMTEC HTSW11422GSRA High-Temperature Terminal Header Specifications:
- Insulator Material: Black Glass Filled Polyester (TSW), Natural Liquid Crystal Polymer (HTSW)
- Terminal Material: Phosphor Bronze
- Plating: Gold over Silver (TSW), Tin (HTSW)
- Operating Temperature Range: -55°C to +125°C (Gold), -55°C to +105°C (Tin)
- Voltage Rating: 550 VAC (SSW), 500 VAC (BCS, ESQ), 450 VAC (RAV-RE), 400 VAC (CES)
- Lead-Free Solderable: Yes (HTSW: Yes, TSW: Wave Only)
- Pin Pitch: 2.54 mm (0.100 inches)
- Contact Range: 2 to 25 per row
- Current Rating: 5.2 A to 16.3 A depending on configuration
- Connector Series Compatibility: SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, SMSS
- Standards: UL E111594, CSA 090871 RoHS compliant
- Mounting Options: Straight and right-angle versions with optional locking features
- Pin Center: 0.635 mm square posts, with optional lead styles including with -LA or Locking Lead
- RoHS compliant and suitable for high-temperature applications in industrial settings
Buy the Samtec Series HTSW High-Temperature Connector: HTSW11422GSRA
Purchase the Samtec high-temperature terminal header online today to ensure durable, reliable electrical connections. Designed for demanding environments, these connectors feature 2.54 mm pitch spacing, phosphor bronze contacts, and liquid crystal polymer insulators. They operate reliably from -55°C to 125°C, offering versatile configurations with up to 25 contacts per row. Available with optional locking features and in straight or right-angle mountings, these connectors meet strict safety standards and are RoHS compliant. Enhance your electronic assemblies with these robust connectors today!
Buy Samtec HTSW11422GSRA now and experience unmatched reliability and performance in high-temperature electrical connections.
