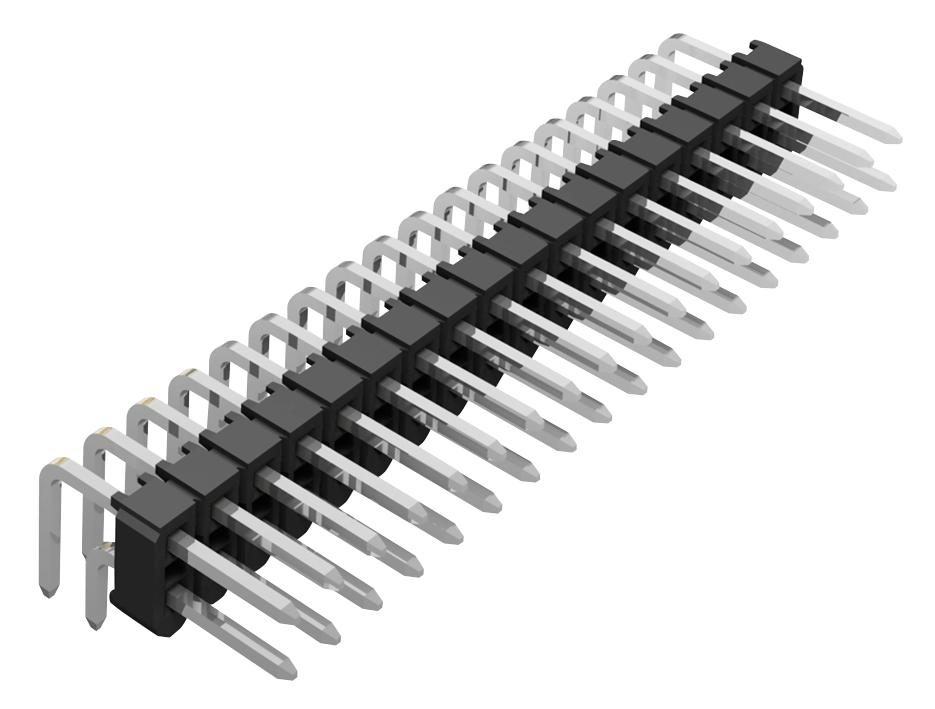

SAMTEC HTSW15022GDRA High-Temperature Terminal Header
The HTSW series from Samtec are high-temperature terminal strip headers designed for reliable signal connections. These unshrouded through-hole headers feature 0.025-inch (0.635mm) square posts and are compatible with various Samtec connector series including SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, and SMSS. They are available with single, dual, or triple row configurations, offering flexibility in pin counts. The pitch spacing is 2.54mm, with right-angle options, accommodating 2 to 25 contacts per row. Operating within -55°C to 125°C, with contacts plated in 10-micron gold, they are made of phosphor bronze and natural liquid crystal polymer insulators, meeting UL and CSA standards. Optional locking features ensure secure connections for industrial applications demanding high-temperature performance and signal integrity.
SAMTEC HTSW15022GDRA High-Temperature Terminal Header Specifications:
- Contact Material: Phosphor Bronze
- Insulator Material: Natural Liquid Crystal Polymer
- Plating: 10 Micron Gold
- Temperature Range: -55°C to +125°C
- Voltage Rating: 550 VAC with SSW, 500 VAC with BCS or ESQ, 450 VAC with BCS or SSM, 400 VAC with CES
- Contact Width: 0.025 inches (0.635mm)
- Post Size: 0.025 inches (0.635mm) square
- Pin Count: 2 to 25 contacts per row
- Configuration: Single, Dual, or Triple rows
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes (TSW: Wave only, HTSW: Solderable)
- Operating Temperature: -55°C to +125°C
- Mounting Style: Through-hole
- Compatibility: SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, SMSS
- RoHS Compliance: Yes
Buy the Samtec HTSW15022GDRA – Reliable High-Temperature Terminal Headers for Industrial Applications
Enhance your industrial applications with the Samtec High-Temperature Terminal Header series. Designed for reliable performance up to 125°C, these connectors feature 0.025-inch square posts, gold-plated contacts, and versatile configurations. Compatible with multiple Samtec series, they provide secure, stable signal connections. The sturdy phosphor bronze terminals and natural liquid crystal polymer insulators meet rigorous industry standards including UL and CSA. Available with optional locking features for added security, these headers are essential for high-temperature and demanding environments. Purchase online today to ensure dependable performance for your manufacturing or control systems.
Order your Samtec Series HTSW15022GDRA today and ensure your industrial projects benefit from durable, high-temperature signal connections with secure locking options.
