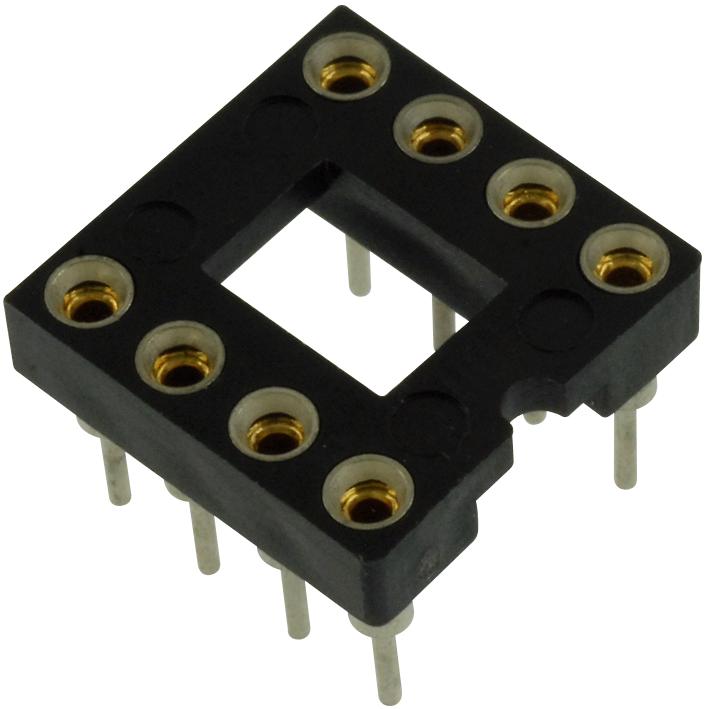

SAMTEC ICA308SST Electronic Connector
The ICA series is a versatile family of plastic rectangular connectors designed for electronic applications requiring reliable signal and power interfacing. Featuring open body design for easy insertion and stackability options for expanded configurations, these connectors are suitable for automation, control systems, and instrumentation. With gold or tin plating options over nickel, they ensure excellent conductivity and corrosion resistance. Their low insertion and withdrawal forces facilitate ease of assembly, making them ideal for automated manufacturing. Rated for operating temperatures from -55°C to +125°C, they withstand voltage up to 14000 V and current ratings of 1A per contact, meeting UL94V-0 flammability standards.
SAMTEC ICA308SST Electronic Connector Specifications:
- Flammability: UL94V-0
- Contact Material: BeCu
- Plating: Au or Sn over 50p" Ni
- Temperature Range: -55°C to +125°C
- Withstanding Voltage: 14000 V
- Current Rating: 1A
- Contact Resistance: 0.64 Ω max
- Insulation Resistance: 5000 MΩ min
- Lead Size Range: 0.015" to 0.022" (0.38mm to 0.56mm)
- Insertion Force: 0.25 oz on average, 5.5 oz max
- Withdrawal Force: 2.0 oz on average, 0.35 oz min
- Dimensions: Length varies with model, typical contact diameter 0.050 - 0.062 inches
- Operating Temperature: -55°C to +125°C
- Standards: UL94V-0 flammability
Buy the Samlec ICA Series – Reliable Electronic Connectors for Industrial Applications
Purchase the Samlec ICA308SST series connectors online today and elevate your electronic assemblies with dependable, easy-to-install connectors featuring low insertion force and high-temperature tolerance. Perfect for automation, instrumentation, and control systems, these connectors offer corrosion-resistant gold or tin plating, UL94V-0 flammability compliance, and a design optimized for automated insertion. Enjoy quick delivery, excellent quality, and seamless integration into your manufacturing process while achieving reliable electrical performance in demanding industrial environments.
Order your Samlec ICA308SST Series high-performance connector today and ensure robust electrical connections for your automation and control projects.
Frequently Asked Questions
Where can I buy SAMTEC ICA308SST?
You can click on the BUY or RFQ button to purchase ICA308SST from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part ICA308SST?
You can download the ICA308SST datasheet or visit the SAMTEC website for support.
Who is the manufacturer of ICA308SST?
SAMTEC
