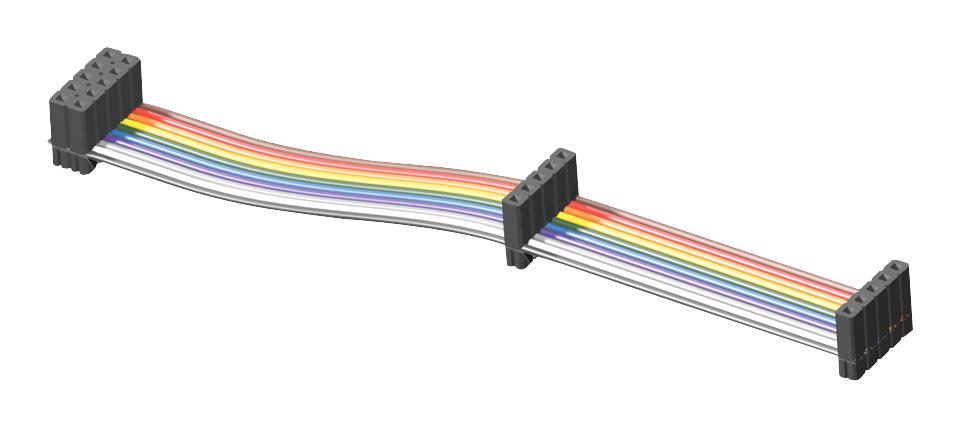

SAMTEC IDSD03D0600T Flat Ribbon Socket Assembly
The IDSD series from Samtec offers durable, high-performance 0.100-inch pitch slim body, double-row IDC flat ribbon socket cable assemblies. Designed with rugged construction, these assemblies support various configurations including single, double, transfer, and breakout options, compatible with headers like TST, HTST, ZST, BST, and EJH. They feature black glass-filled polyester insulators, BeCu contacts with optional gold or tin plating, and are available with 28 AWG stranded copper wire. Operating temperatures range from -40°C to +105°C, with current ratings up to 3.4A per pin. Suitable for diverse industrial and electronic applications requiring reliable, shielded connections.
SAMTEC IDSD03D0600T Flat Ribbon Socket Assembly Specifications:
- Pitch: 2.54 mm (0.100 inch)
- Insulator Material: Black Glass Filled Polyester
- Contact Material: BeCu with optional gold or tin plating
- Wire: 28 AWG, 7/36 stranded, tinned copper
- Temperature Range: -40°C to +105°C (gray cable), -20°C to +105°C (rainbow cable)
- Current Rating: 3.4 A per pin (two pins powered)
- Pin Count: 4 to 72
- Contact Resistance: 15 milliohms
- Shielding Options: Polarizing keys, stripped and tinned leads, breakout configurations
- Cable Options: Gray, color-coded, UL E111594 qualified
- Assembly Length: Minimum 2 inches ±1/8, various lengths available
- RoHS Compliant: Yes
- Compatible Headers: TST, HTST, ZST, BST, EJH
- Additional Features: Locking clips, ejector headers, mating shrouded terminal strips
Buy the Samtec Series IDSD Socket Cable Assembly: IDSD03D0600T
Get your Samtec Series IDSD flat ribbon socket assembly now online to enjoy quick delivery and dependable performance. Designed for high durability and versatility, these assemblies support various configurations including single, double, and transfer ends, compatible with multiple headers. Featuring black glass-filled polyester insulators, BeCu contacts with optional gold or tin plating, and 28 AWG stranded copper wire, they operate from -40°C to +105°C with ratings up to 3.4A per pin. Ideal for industrial, electronic, and harness applications requiring robust, shielded connectivity. Purchase today for assured quality and efficient installation.
Order your Samtec Series IDSD cable assembly today and ensure reliable, high-quality connections for your industrial and electronic projects.
