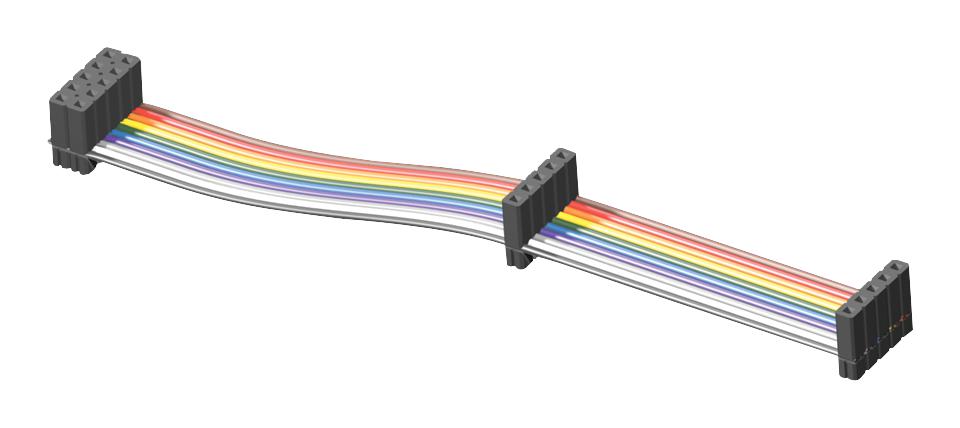

SAMTEC IDSD04D1000 Flat Ribbon Connector
The IDSD series from Samtec features 0.100-inch pitch slim, double-row IDC flat ribbon socket cable assemblies. Rugged and reliable, these assemblies are designed to connect various electronic modules efficiently with configurations including single-end, double-end, and transfer end options. Compatible with multiple Samtec connector series, they support polarization, stripping, tinned wires, daisy chaining, and reversed wiring options. Manufactured with black glass-filled polyester insulators and gold or tin-plated copper contacts, they operate within a temperature range of 20°C to +105°C, ensuring durability in demanding environments.
SAMTEC IDSD04D1000 Flat Ribbon Connector Specifications:
- Pitch: 0.100 inch (2.54 mm)
- Insulator Material: Black Glass Filled Polyester
- Plating: Au over 50h" Ni or Sn over 100p" Cu or 80u" Ni
- Wire: 28 AWG 7/36 stranded Tinned Copper
- Temperature Range: 20°C to +105°C
- Contact Material: Phosphor Bronze
- Current Rating: 3.4 A per pin for IDSD/TST, 3 A per pin for IDMD
- Contact Resistance: 15 mΩ
- Lead Size Range: 0.56 mm to 0.71 mm
- Insertion Depth: 6.59 mm to 22 mm
- RoHS Compliant: Yes
- Applications: Compatible with TST, HTST, ZST, BST, EJH series connectors
- Configurations include polarized, breakout, reversed wiring, and stripping options
- Series is non-standard and non-returnable
- Assembled Length: Standard design with flexible options
Buy the Samtec Series IDSD Flat Ribbon Connector: IDSD04D1000
Enhance your electronic projects with the Samtec Series IDSD flat ribbon connector. Offering 0.100-inch pitch, durable construction, and customizable wiring options, this connector guarantees reliable performance. Designed for versatility, it supports various configurations including polarized, breakout, and reverse wiring. Its rugged insulator and gold or tin plating ensure long-lasting, stable connections in demanding environments. Whether for prototyping or mass production, order online today to secure this versatile component and improve your device’s connectivity, convenience, and overall performance.
Order your Samtec Series IDSD04D1000 flat ribbon connector today and ensure reliable, precise electronic connections with durable design features.
