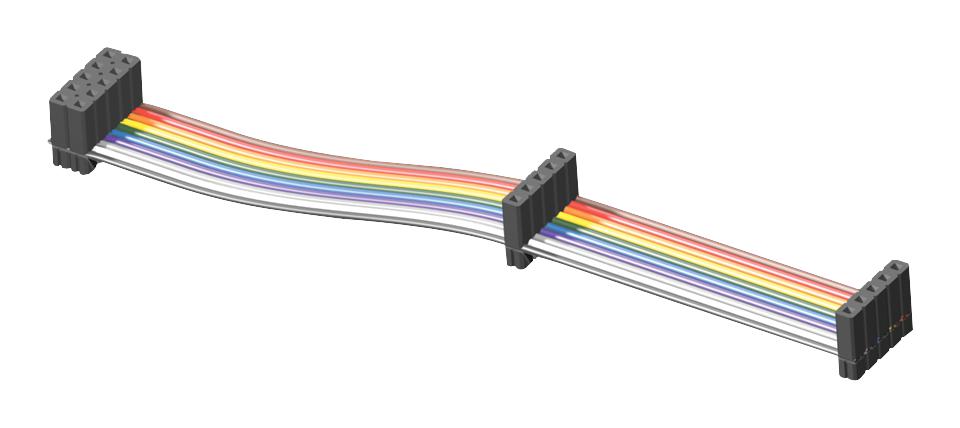

SAMTEC IDSD05D2000T IDC Flat Ribbon Connector
The IDSD series from Samtec features 0.100-inch (2.54mm) pitch slim-body, double-row, IDC flat ribbon socket cable assemblies suitable for industrial applications. These versatile connectors support configurations such as single-ended (socket or male plug), double-ended, and transfer options with polarization and wiring reversal features. Constructed with black glass-filled polyester insulators, contacts made from beryllium copper with optional gold or tin plating, and 28 AWG stranded tinned copper wire, they operate from -20°C to +105°C. With current ratings up to 3.4A per pin, they are reliable for complex wiring and connector needs in automation and control systems.
SAMTEC IDSD05D2000T IDC Flat Ribbon Connector Specifications:
- Pitch: 0.100 inch (2.54mm)
- Configuration: Double-row, IDC flat ribbon
- Insulator Material: Black glass-filled polyester
- Contact Material: Beryllium copper with gold or tin plating
- Wire: 28 AWG 7/36 stranded tinned copper wire
- Temperature Range: -20°C to +105°C for rainbow cable, -40°C to +105°C for gray cable
- Current Rating: 3.4A per pin (single end), 3A (transfer end)
- Contact Resistance: 15 mΩ
- Pin Count: 4 to 72
- Color Coding: Gray cables with color stripes
- Compatibility: Supports mating with series TST, HTST, ZST, BST, EJH
- Rated UL E111594
- Minimum Length: 2 inches (±1/8 inch)
- Assembly Options: Single end, double end, transfer, polarization, reversed wiring, breakout arrangements
- RoHS Compliant: Yes
Buy the Samtec IDSD – Reliable Connector for Industrial Applications
Enhance your industrial wiring system with Samtec IDC flat ribbon connector assemblies. Designed for durability and versatility, these connectors support multiple configurations, polarization options, and wiring reversals. Made from high-quality materials with a 0.100-inch pitch, they provide reliable electrical connections up to 3.4A per pin across temperatures from -20°C to +105°C. Easy to install, RoHS compliant, and compatible with various series, these assemblies are ideal for automation, control panels, and complex industrial applications. Order online today for quick delivery and superior performance.
Buy Samtec IDSD series connector assemblies now and experience unmatched reliability, versatile configurations, and high-performance for industrial wiring needs.
Frequently Asked Questions
Where can I buy SAMTEC IDSD05D2000T?
You can click on the BUY or RFQ button to purchase IDSD05D2000T from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part IDSD05D2000T?
You can download the IDSD05D2000T datasheet or visit the SAMTEC website for support.
Who is the manufacturer of IDSD05D2000T?
SAMTEC
