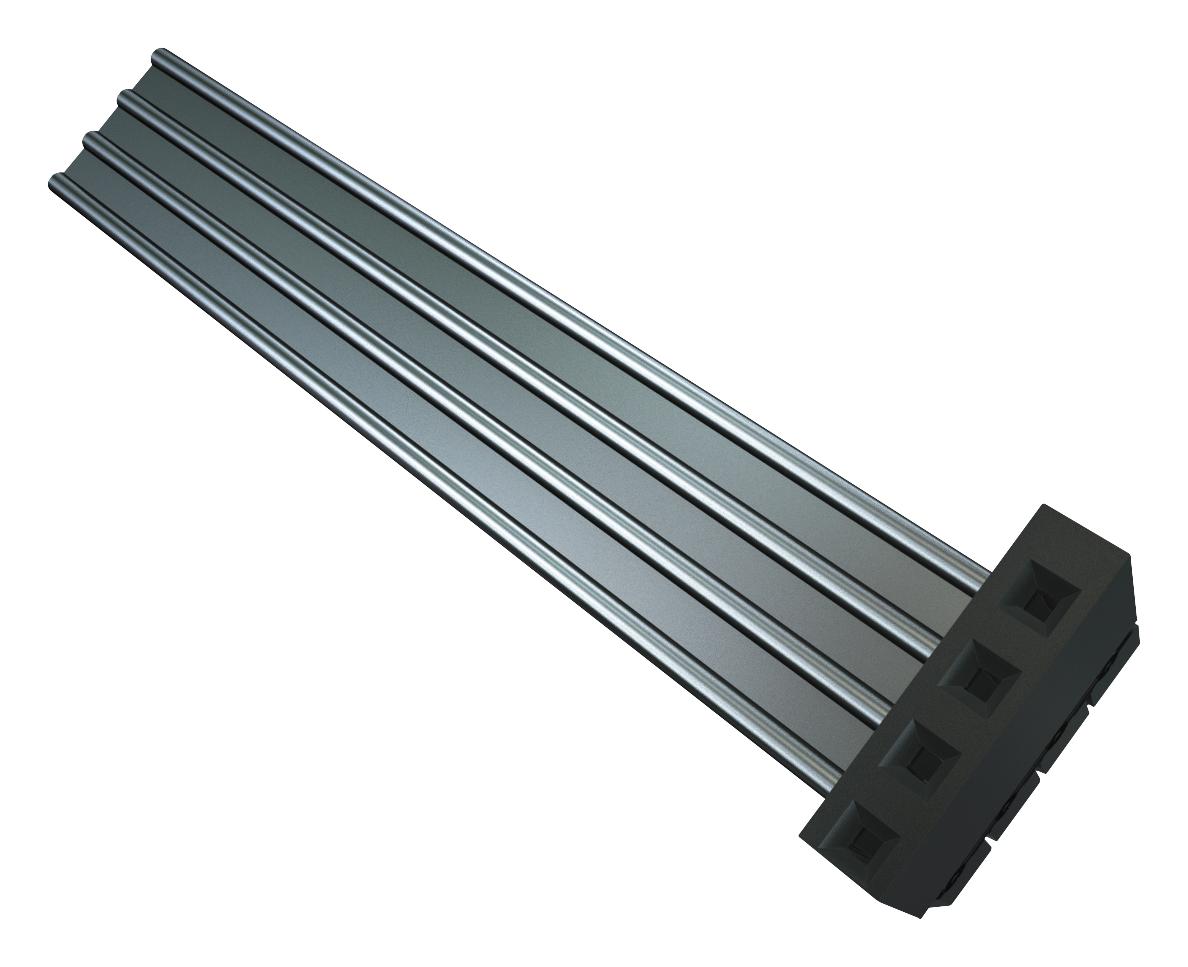

SAMTEC IDSS05S0575TST4 Ruggedized Connector Series
This high-reliability connector series features ruggedized ejector headers with copper contacts, gold or tin plating, and a temperature range of -20°C to +105°C, ideal for industrial and electronic applications. Designed with black glass-filled polyester insulators and available in single or double row configurations, these connectors support 28 AWG stranded copper wire, with current ratings up to 3.4 A per pin. Suitable for demanding environments, they include polarization options, RoHS compliance, and various mating options for versatile assembly in complex systems.
SAMTEC IDSS05S0575TST4 Ruggedized Connector Series Specifications:
- Insulator Material: Black Glass Filled Polyester
- Plating: Au over 50 1
- Sn over 100 1
- Ni over 50 1"
- Wire: 28 AWG 7/36 stranded Tinned Copper
- Temperature Range: -20°C to +105°C (Rainbow Cable), -40°C to +105°C (Gray Cable)
- Contact Material: Phosphor Bronze
- Current Rating: 3.4 A per pin (IDSD/TST), 3 A per pin (IDSS)
- Lead Size Range: 0.56 mm (.022") SQ, 0.24 mm (.028") SQ
- Insertion Depth: 5.59 mm (.220") to 6.22 mm (.245")
- RoHS Compliant: Yes
- Connector Configuration: Single and double row options, polarization available
- Assembly Lengths: 4.25 inches (IDSD-05-D-04.25-S02), 5.75 inches (IDSS-05-S-05.75-TST4)
- Mating: Compatible with various Samtec series including TSW, MTSW, TSM, EJH
- RoHS Status: Fully compliant with current environmental standards
- Certification: Recognized under quality standards for industrial applications
Buy the Samtec IDSS – Reliable High-Density Connectors for Industrial Applications
Order the Ruggedized Connector Series from Samtec today to ensure highly reliable and durable connections in demanding industrial, electronic, and automation applications. These connectors feature gold or tin plating options, support 28 AWG stranded copper wire, and operate within a -20°C to +105°C temperature range. Their robust construction, polarization options, and RoHS compliance make them ideal for high-performance systems. Purchase online now to benefit from quick delivery, excellent quality, and trusted brand assurance for your critical projects.
Buy Samtec IDSS series connectors now and experience unmatched durability and performance in your electronic systems.
Frequently Asked Questions
Where can I buy SAMTEC IDSS05S0575TST4?
You can click on the BUY or RFQ button to purchase IDSS05S0575TST4 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part IDSS05S0575TST4?
You can download the IDSS05S0575TST4 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of IDSS05S0575TST4?
SAMTEC
