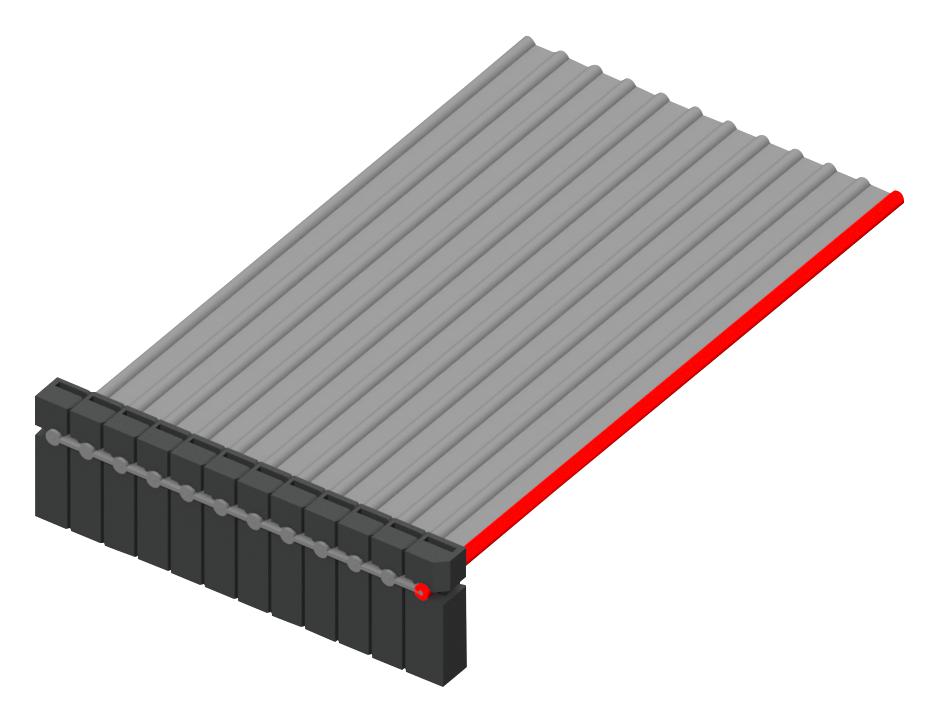

SAMTEC IDSS10D1000TG High-Quality Electrical Connector
The IDSS series are high-quality, non-standard, and non-returnable connectors designed for precise electrical connections. Made with black glass-filled polyester insulators, these connectors feature gold over nickel or tin plated copper contacts, supporting 28 AWG stranded tinned copper wire. They are RoHS compliant, durable, and suitable for applications requiring a current rating of 3.4 A per pin. These versatile connectors mate with multiple series, include polarized options, and are ideal for complex electronic assemblies, offering reliable performance across various industry applications.
SAMTEC IDSS10D1000TG High-Quality Electrical Connector Specifications:
- Insulator Material: Black Glass Filled Polyester
- Plating: Au over 50h
- Current Rating: 3.4 A per pin (IDSD/TST), 3 A per pin (IDMD)
- Wire: 28 AWG 7/36 stranded tinned copper
- Temperature Range: 20°C to +105°C (Rainbow Cable), 40°C to +105°C (Gray Cable)
- Contact Material: Phosphor Bronze with gold/nickel/tin plating
- RoHS Compliant: Yes
- Compatible with Series: TSW, MTSW, TSM, EJH, PHT, HMTSW, HTSW, HW, DW, EW, ZW, MTLW
- Physical Dimensions: Length varies; terminal hole sizes from 0.56 mm to 0.71 mm; insertion depth 6.59 mm to 22 mm.
Buy the Samtec Series IDSS Connectors: IDSS10D1000TG
Enhance your electronic assemblies with the Samtec IDSS series connectors. Designed with durable materials and gold/nickel plating, these connectors support 28 AWG stranded tinned copper wire and provide high current ratings for reliable performance. Their RoHS compliance ensures they meet environmental standards. Suitable for complex applications, they feature polarized options and compatibility with various mating series. Easy to install and highly durable, these connectors offer a secure and efficient solution for your wiring needs. Order online today to experience quick shipping and excellent customer support.
Buy Samtec IDSS10D1000TG connectors now and experience unmatched reliability and performance in electronic connection solutions.
Frequently Asked Questions
Where can I buy SAMTEC IDSS10D1000TG?
You can click on the BUY or RFQ button to purchase IDSS10D1000TG from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part IDSS10D1000TG?
You can download the IDSS10D1000TG datasheet or visit the SAMTEC website for support.
Who is the manufacturer of IDSS10D1000TG?
SAMTEC
