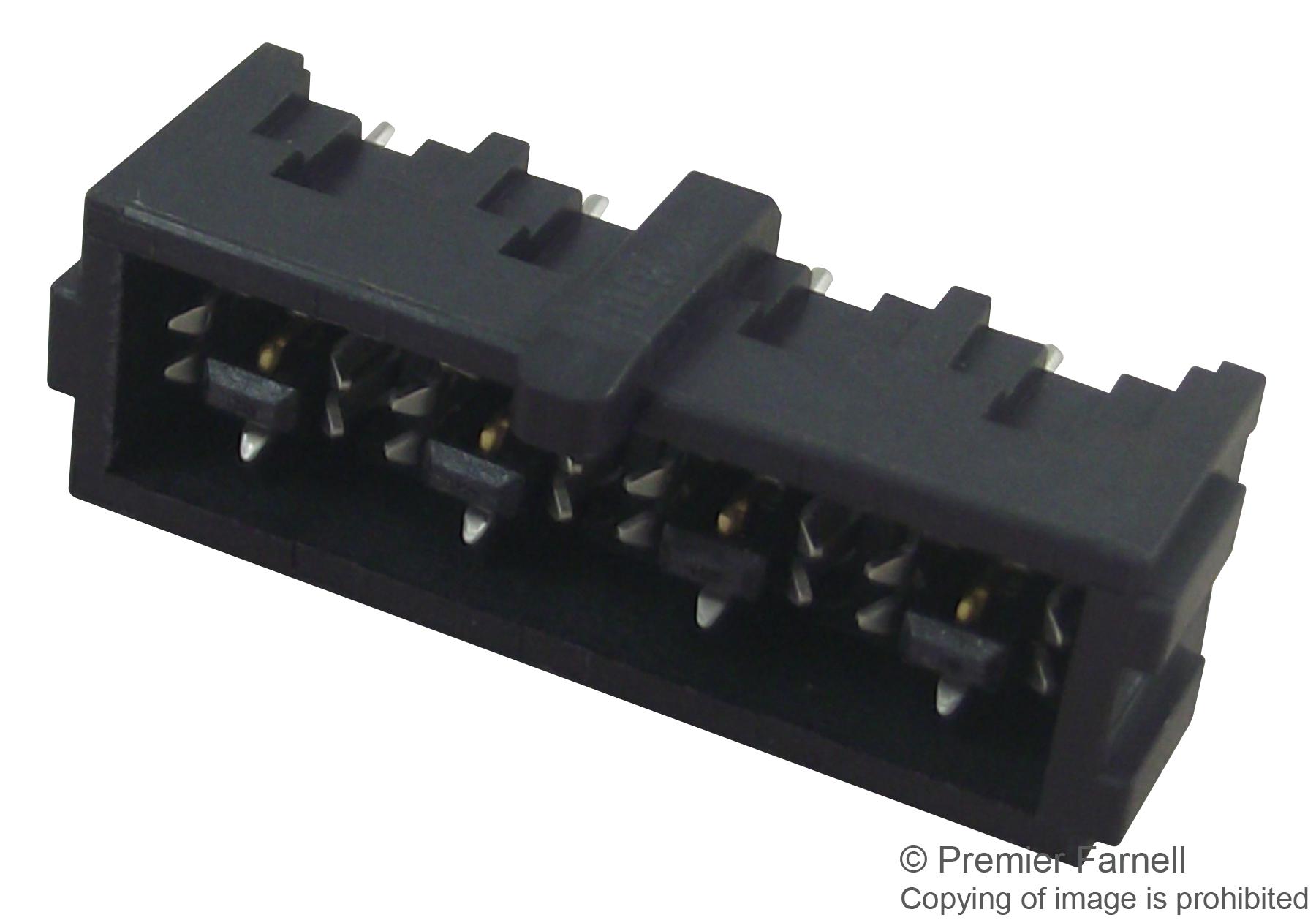

SAMTEC IJ501050LS1TR High-Speed PCB Connector
The IJ5 series contact is designed for high-speed PCB applications, featuring a black LCP insulator, gold or tin plating, and copper alloy contacts. It supports frequencies up to 55 GHz and 17.0 Gbps data rates, with a current rating of 4.4 A per pin. The contact operates within -55°C to +125°C, has an insulation resistance exceeding 35,000 MΩ, and offers excellent signal integrity with isolation up to 80 dB. Suitable for demanding high-frequency systems, it ensures reliable performance with RoHS compliance and solderability.
SAMTEC IJ501050LS1TR High-Speed PCB Connector Specifications:
- Material: Black LCP insulator, copper alloy contacts with gold or tin plating
- Frequency Range: Up to 55 GHz for high-speed data signal transmission
- Data Rate: 17.0 Gbps max, with versions supporting 10.8 and 15.2 Gbps
- Current Rating: 4.4 A per pin for adjacent powered pins
- Operating Temperature: -55°C to +125°C
- Insulation Resistance: >35,000 MΩ
- Contact Resistance: Center <34 mΩ, Outer <7 mΩ
- Isolation: Up to 80 dB
- RoHS Compliant: Yes
- Solderability: Lead-free process supported
- Dimensions: Specific stack heights, available options up to 40mm
Buy the Samtec IJ5 – Reliable High-Speed Connector for Industrial Applications
Enhance your high-frequency systems with the Samtec IJ5 series connector, engineered for superior signal integrity and reliability. Featuring support for up to 55 GHz and data rates of 17.0 Gbps, these connectors are ideal for demanding industrial and high-speed PCB applications. Crafted with robust materials, RoHS compliant, and solderable for easy assembly, they ensure long-lasting performance across temperatures from -55°C to +125°C. Get your reliable, high-performance connector today online to elevate your electronic designs and manufacturing systems.
Buy Samtec IJ5 series high-speed PCB connectors now and experience unmatched performance, signal integrity, and durability for demanding industrial projects.
Frequently Asked Questions
Where can I buy SAMTEC IJ501050LS1TR?
You can click on the BUY or RFQ button to purchase IJ501050LS1TR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part IJ501050LS1TR?
You can download the IJ501050LS1TR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of IJ501050LS1TR?
SAMTEC
