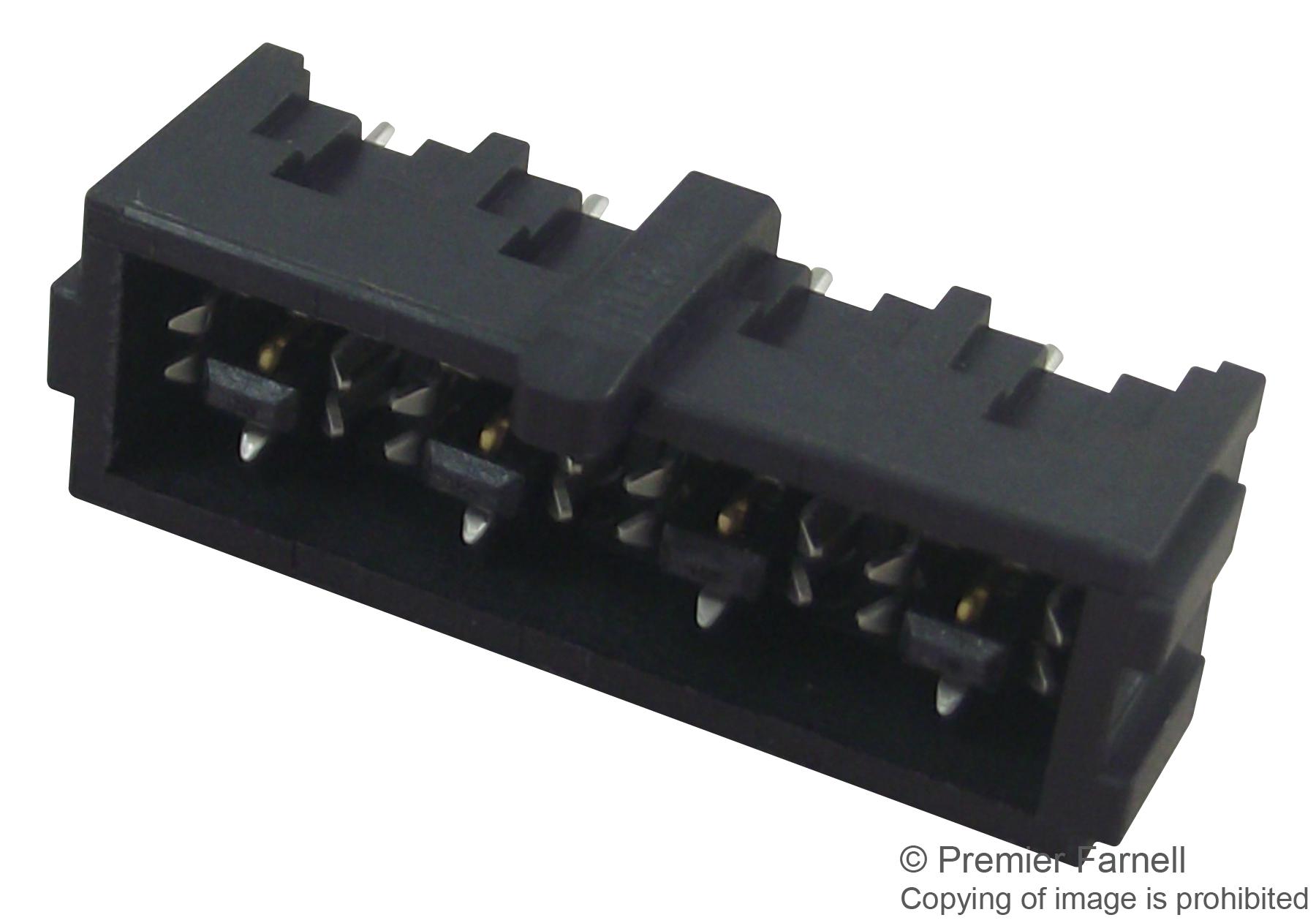

SAMTEC IJ502050LS1TR High-Speed PCB Connector
The 1J5 Series is a high-frequency, high-speed interconnect solution designed for PCB applications. It features a black LCP insulator with Gold or Sn plating over Copper Alloy contacts. Operating between -55°C to +125°C, it provides excellent isolation performance up to 70 dB across various frequencies, and can handle currents up to 4.4 A per pin. The connector is RoHS compliant, lead-free, and suitable for high-speed data transfer in demanding industrial and electronic systems. Complete test data and PCB layout recommendations are available on Samtec's website.
SAMTEC IJ502050LS1TR High-Speed PCB Connector Specifications:
- Shell Material: Not specified
- Insulator Material: Black LCP PSS
- Contact Material: Copper Alloy
- Plating: Au or Sn over Ni
- Frequency Range: Up to 70 GHz / 17.6 Gbps
- Isolation: Up to 80 dB
- Current Rating: 4.4 A per pin
- Operating Temperature Range: -55°C to +125°C
- Insulation Resistance: >35,000 MΩ
- Contact Resistance: Center <34 mΩ, Outer <7 mΩ
- Dielectric Withstanding Voltage: 200V
- RoHS Compliance: Yes
- Lead-Free Solderable: Yes
- Additional options: Other stack heights (25, 58, 40 mm); other PCB thicknesses available
- Application: Board-to-Board, Cable assembly
Buy the Samtec 1J5 Series – Reliable High-Speed PCB Connectors for Industrial Applications
Purchase the high-speed PCB connector from the 1J5 Series today and ensure your electronic systems operate reliably at high data transfer rates. Featuring Gold or Sn plating, excellent isolation up to 80 dB, and an operating temperature range from -55°C to +125°C, this connector is ideal for demanding industrial and electronic applications. RoHS compliant, lead-free, and designed for easy soldering, it provides robust performance for your manufacturing needs. Secure your order now online for fast delivery and high-quality interconnect solutions.
Order your Samtec 1J5 Series connector today and enhance your high-frequency, high-speed system performance with dependable PCB interconnects.
Frequently Asked Questions
Where can I buy SAMTEC IJ502050LS1TR?
You can click on the BUY or RFQ button to purchase IJ502050LS1TR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part IJ502050LS1TR?
You can download the IJ502050LS1TR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of IJ502050LS1TR?
SAMTEC
