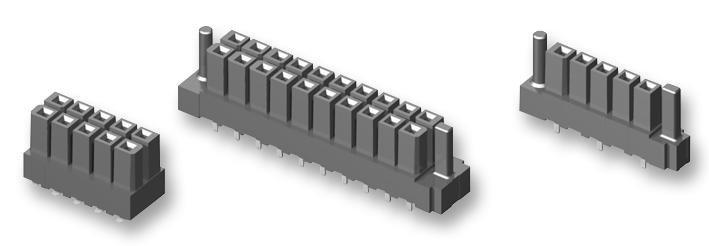

SAMTEC IPBS10202TD PowerMate Power System
PowerMate system offers versatile board-to-board and wire cable solutions with polarized guide posts and reliable Tiger Buy contacts. Available in vertical and right-angle configurations, these rugged metal or plastic latching systems support optional polarization for precise alignment in parallel, perpendicular, and coplanar applications. The modular design includes elevated stack heights, selective contact loading for custom creepage and clearance needs, and cable components for various assembly options. Ideal for high-current and high-density electronic systems requiring robust, adaptable, and reliable power and signal connections.
SAMTEC IPBS10202TD PowerMate Power System Specifications:
- Current Capacity: 59A per contact, 166A total for two pins powered, 48A per contact, 144A total for four pins powered, 7.6A per contact for six pins
- Voltage Rating: 600V to 1200V (MFG Tested)
- Contact Material: Tiger Buy™ contacts, plated for durability
- Pin Spacing: 2.54 mm (0.100 inch), 4.19 mm (0.165 inch), 4.27 mm (0.168 inch)
- Stack Heights: 1.52 inches (38.6 mm), 1.66 inches (42.2 mm)
- Configuration: Board-to-board, discrete wire cable systems, with options for vertical and right-angle mounting
- Guide Posts: Polarized, optional, with guide hole sizes up to 15 positions per row
- Materials: Rugged metal or plastic housing, with optional polarized features for precise alignment
- Compatibility: Supports various lead styles including through-hole, surface mount, single row, double row, keying options, and guide post configurations
- Environmental: Designed to meet industry standards for high current, mechanical durability, and reliability
Buy the Buy FLEXIBLE POWER SYSTEMS PowerMate Part Number IPBS10202TD Online
Purchase the PowerMate Power System online today to ensure a reliable, high-current, and adaptable connection solution for your electronic applications. Featuring polarized guide posts, rugged construction with metal or plastic housing, and support for multiple configurations—vertical, right-angle, and coplanar—this system offers excellent flexibility and durability. Perfect for industry-grade power and signal distribution, it supports high current, customizable creepage and clearance, and various lead styles and sizes. Order now for fast delivery and technical support to meet your specific production needs.
Get FLEXIBLE POWER SYSTEMS PowerMate IPBS10202TD today—designed for high-current, modular, and reliable electronic power connections.
Frequently Asked Questions
Where can I buy SAMTEC IPBS10202TD?
You can click on the BUY or RFQ button to purchase IPBS10202TD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part IPBS10202TD?
You can download the IPBS10202TD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of IPBS10202TD?
SAMTEC
