SAMTEC IPBS10501TDGP High-Performance Connectors
The IPBS series is a versatile, high-quality connector series featuring individually shrouded contacts, polarized guide post options, and a liquid crystal polymer insulator for enhanced durability. Designed for reliable performance in electronic assemblies, these connectors support operating temperatures from -55°C to +105°C and have a voltage rating of 400 VAC and 565 VDC. They are RoHS compliant, lead-free, and suitable for a range of industrial, electronic, and high-reliability applications, offering customizable sizes and configurations with easy mating and secure attachment.
SAMTEC IPBS10501TDGP High-Performance Connectors Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Sn over 50u" (1.27 um) Ni
- Operating Temperature Range: -55°C to +105°C
- Insertion Depth: 6.15 mm (.242") to 7.24 mm (.285")
- Wiping Distance: 0.38 mm (.015") min
- Insertion Force: 14 oz (3.89 N)
- Withdrawal Force: 10 oz (2.78 N)
- Voltage Rating: 400 VAC / 565 VDC
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Current Rating: 10.3 A
- Number of Positions: Variety from 2 to 15
- Standard Sizes: 02, 03, 04, 05, 08, 10, 15
- Additional options include polarized guide posts and non-standard lengths subject to MOQ.

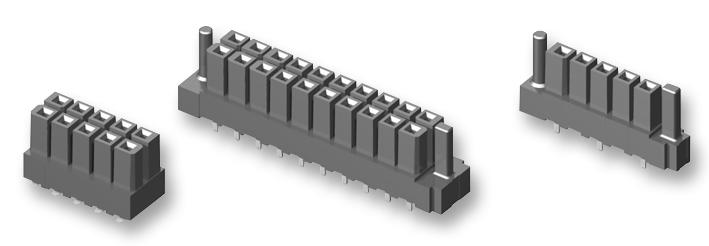

Buy the Samtec Series IPBS Connectors: IPBS10501TDGP
Purchase your Samtec Series IPBS IPBS10501TDGP connector online today and enjoy dependable, high-quality electronic connectivity. Designed with individually shrouded contacts, polarized guide posts, and a durable Liquid Crystal Polymer insulator, it supports a wide temperature range from -55°C to +105°C. Its RoHS compliance and lead-free features make it suitable for various industrial and electronic applications. With customizable sizes and configurations, this connector guarantees secure mating, excellent electrical performance, and compliance with modern standards. Shop now for fast delivery and unmatched reliability in your assemblies.
Order your Samtec Series IPBS IPBS10501TDGP connector today and ensure reliable, high-performance electronic connections for demanding applications.
Frequently Asked Questions
Where can I buy SAMTEC IPBS10501TDGP?
You can click on the BUY or RFQ button to purchase IPBS10501TDGP from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part IPBS10501TDGP?
You can download the IPBS10501TDGP datasheet or visit the SAMTEC website for support.
Who is the manufacturer of IPBS10501TDGP?
SAMTEC
