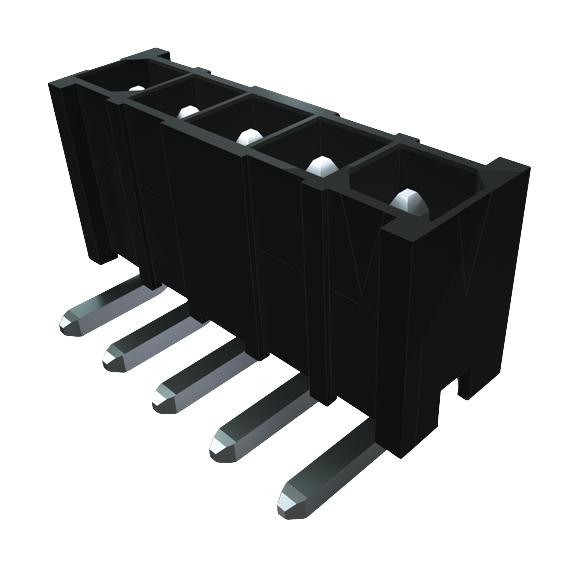

SAMTEC IPBT102H1TSRAK Terminal Power Connector
The IPBT-102-H1-T-SRA-K is a high-quality, isolated terminal power connector with a keyed latching mechanism, designed for reliable mating with IPBD series polarization. Crafted from black liquid crystal polymer insulator and high copper alloy contacts, it features a silver over 50 micro-inch nickel coating for durability. Operating within –55°C to +105°C, it supports voltages up to 400 VAC and 565 VDC with a standard creepage of 66 mm. The design ensures compliance with UL standards, offers lead-free solderability, and includes shrouded pins for safety and compatibility with various PCB layouts, making it ideal for power distribution applications.
SAMTEC IPBT102H1TSRAK Terminal Power Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: High Copper Alloy
- Contact Coating: Sn over 50 micro-inch Nickel
- Operating Temperature Range: –55°C to +105°C
- Voltage Rating: 400 VAC / 565 VDC
- Standard Creepage: 66 mm (2.60 inches)
- Standard Clearance: 3.95 mm (0.155 inches)
- Lead-Free Solderable: Yes
- Current per Contact: 10.3 A for 2 positions, 6.0 A for 4 positions
- Number of Positions: 8
- Design Features: Keyed, shrouded pins, polarized guide, and optional post hole
- Compliance: UL Listed, TAA compliant
- Other Sizes and Styles: Available, contact Samtec for details
Buy the Samtec Series IPBT Isolated Terminal Power Connector: IPBT-102-H1-T-SRA-K
Enhance your electronic and power distribution projects with the Samtec Series IPBT terminal power connector, featuring a keyed latch, durable high copper alloy contacts, and a Black Liquid Crystal Polymer insulator. Operating from –55°C to +105°C, it supports voltages up to 400 VAC and 565 VDC, ensuring safety with UL compliance and lead-free solderability. Its shrouded pins and polarized guides increase safety and reliability. Perfect for Power, industrial equipment, or automation systems, this connector guarantees secure connections and long-lasting performance in demanding environments.
Order your Samtec Series IPBT-102-H1-T-SRA-K today and ensure reliable power connectivity with durable, high-quality terminal connectors suitable for demanding applications.
Frequently Asked Questions
Where can I buy SAMTEC IPBT102H1TSRAK?
You can click on the BUY or RFQ button to purchase IPBT102H1TSRAK from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part IPBT102H1TSRAK?
You can download the IPBT102H1TSRAK datasheet or visit the SAMTEC website for support.
Who is the manufacturer of IPBT102H1TSRAK?
SAMTEC
