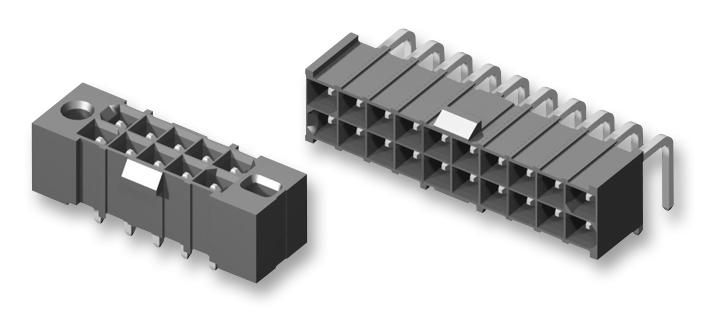

SAMTEC IPBT103H1TDGP Power Header
The IPBT-105-H1-T-D-GP is an isolated terminal power header designed for reliable electrical connections in high-temperature environments, supporting voltages up to 400 VAC and 565 VDC. Constructed with high copper alloy contacts and black liquid crystal polymer insulation, it features a latching mechanism and keying for polarization. The header offers optional shrouded pins, polarized guides, and a variety of sizes and lead styles. It complies with UL and TAA standards, with a temperature range of -55°C to +105°C, ensuring durability and safety for demanding industrial applications.
SAMTEC IPBT103H1TDGP Power Header Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: High Copper Alloy
- Operating Temp Range: -55°C to +105°C
- Voltage Rating: 400 VAC / 565 VDC
- Standard Creepage: 66 mm
- Standard Clearance: 3.95 mm
- Lead Temperature: Solderable, Lead-Free
- Mechanical: Latching mechanism with polarization and optional shrouded pins
- Number of Positions: 8
- Current per Contact: 10.3 A (positions vary)
- Certifications: UL Listed, TAA Compliant
- Design: Optional keyed, tiered, and non-standard sizes
Buy the Samtec Series Power Header: IPBT-105-H1-T-D-GP
Order the Samtec IPBT-105-H1-T-D-GP power header online today for unmatched reliability in industrial power distribution. Designed with high copper alloy contacts and liquid crystal polymer insulation, it supports voltages up to 400 VAC and 565 VDC, making it ideal for demanding environments. The header features a precise latching mechanism, polarization, optional shrouded pins, and meets UL and TAA standards. Easy to solder, with optional sizes and configurations, it ensures a secure connection for complex electrical systems and heavy-duty applications.
Get Samtec IPBT-105-H1-T-D-GP today—built for high-temperature durability and reliable power connections.
Frequently Asked Questions
Where can I buy SAMTEC IPBT103H1TDGP?
You can click on the BUY or RFQ button to purchase IPBT103H1TDGP from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part IPBT103H1TDGP?
You can download the IPBT103H1TDGP datasheet or visit the SAMTEC website for support.
Who is the manufacturer of IPBT103H1TDGP?
SAMTEC
