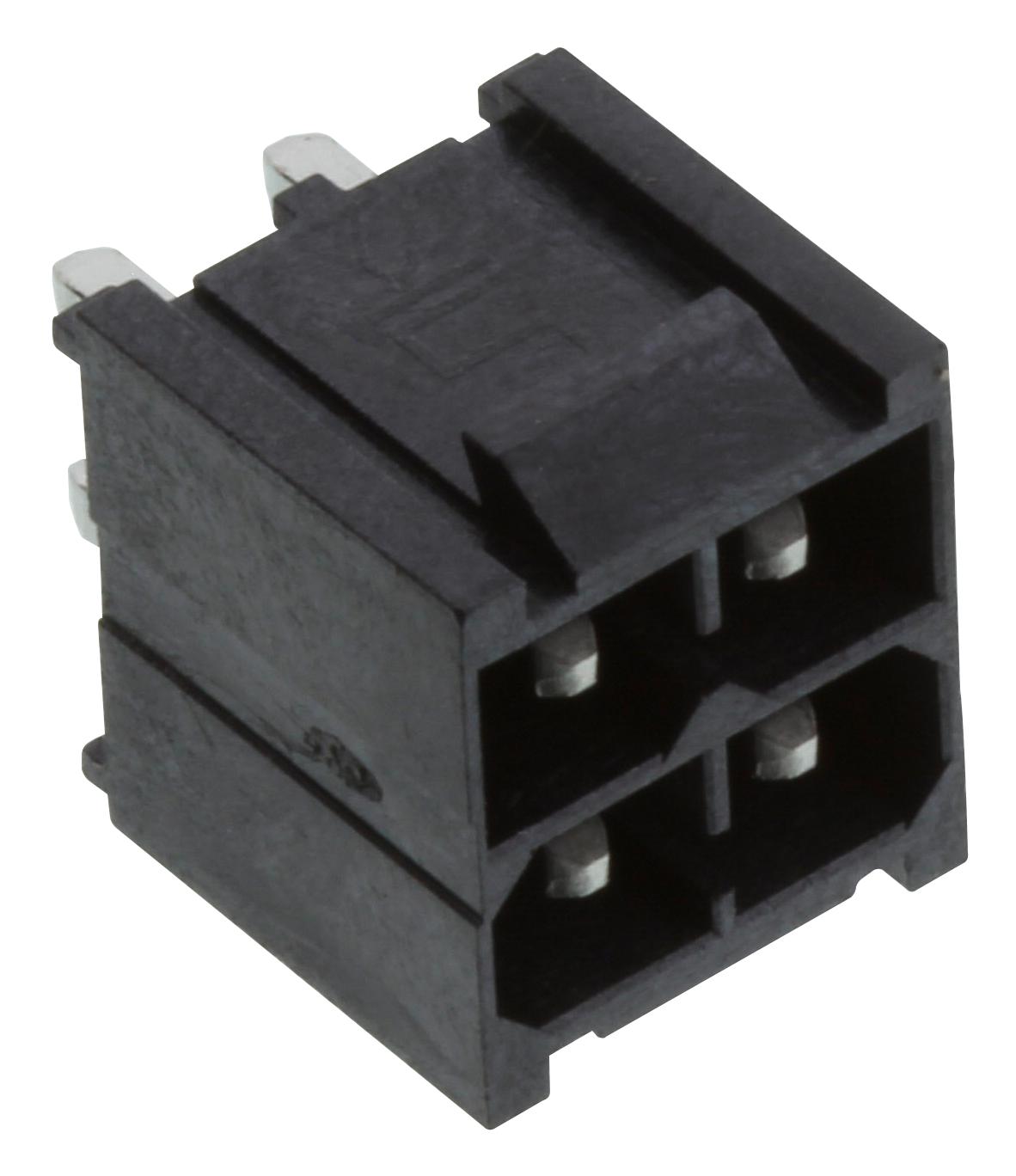

SAMTEC IPBT104H1TSK Power Header
The IPBT series isolated terminal power headers feature a latching mechanism for secure mating with keyed cable mates, designed with high-quality materials such as Liquid Crystal Polymer insulators and high copper alloy contacts. Operating within a temperature range of -55°C to +105°C and rated for 400 VAC/565 VDC, these connectors comply with UL and TAA standards. They offer selective loading, shrouded pins, polarized guides, and customizable options, making them suitable for demanding power and data applications in industrial and electronic systems.
SAMTEC IPBT104H1TSK Power Header Specifications:
- Insulator Material: Liquid Crystal Polymer
- Contact Material: High Copper Alloy
- Contact Finish: Sn over 50 yf (1.27 um) Ni
- Operating Temperature Range: -55°C to +105°C
- Voltage Rating: 400 VAC/565 VDC
- Creepage Distance: 66 mm (2.60 inches)
- Clearance: 3.95 mm (0.155 inches)
- Number of Positions: 8
- Max Current per Contact: 10.3 A
- Standards Compliance: UL, TAA
- Lead Style: Solderable, Lead-Free
- Optional Sizes and Styles: Various configurations available
- Shrouded, polarized, keyed design for secure mating
- Customizable lengths and features upon request
Buy the Samtec Series Isolated Power Header: IPBT104H1TSK
Purchase the Samtec IPBT104H1TSK power header online today. Designed for robust power connections with secure latching, shrouded pins, and polarized guides, this connector supports temperatures from -55°C to +105°C and achieves UL and TAA compliance. Perfect for industrial machinery, automation systems, and electronic applications requiring high current capacity and reliable performance. Order now to benefit from fast shipping, quality assurance, and the confidence of using a globally trusted brand in power connectivity solutions!
Get Samtec IPBT104H1TSK today—built for high-current power delivery, durability, and reliable secure mating.
Frequently Asked Questions
Where can I buy SAMTEC IPBT104H1TSK?
You can click on the BUY or RFQ button to purchase IPBT104H1TSK from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part IPBT104H1TSK?
You can download the IPBT104H1TSK datasheet or visit the SAMTEC website for support.
Who is the manufacturer of IPBT104H1TSK?
SAMTEC
