SAMTEC IPBT104H2TDK Power Header
The IPBT series is an isolated terminal power header designed for reliable electrical connections in demanding applications. Featuring a keyed latching mechanism, polarized guides, and shrouded contacts, it ensures correct mating and enhanced safety. Constructed with high-quality materials including black liquid crystal polymer insulators and high copper alloy contacts, it offers superb performance with a voltage rating of 400 VAC/565 VDC and operating temperature range from -55°C to +105°C. This series supports various configurations, including different heights, lead styles, and optional features like post holes and selective loading, making it suitable for diverse power distribution needs in industrial and electronic systems.
SAMTEC IPBT104H2TDK Power Header Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: High Copper Alloy
- Sn over 50 yf (1.27 um) Ni el coating
- Operating Temperature Range: -55°C to +105°C
- Voltage Rating: 400 VAC / 565 VDC
- Standard Crevice: 66 mm (2.60 inches), Clearance: 3.95 mm (0.155 inches)
- Contact Current: 2, 6, 8 positions supporting up to 10.3 A per contact and 6.0 A for other configurations
- Mounting Style: Header with keyed latching mechanism, polarized guides, optional post hole
- Certifications: UL Recognized, TAA compliant, Lead-Free Solderable

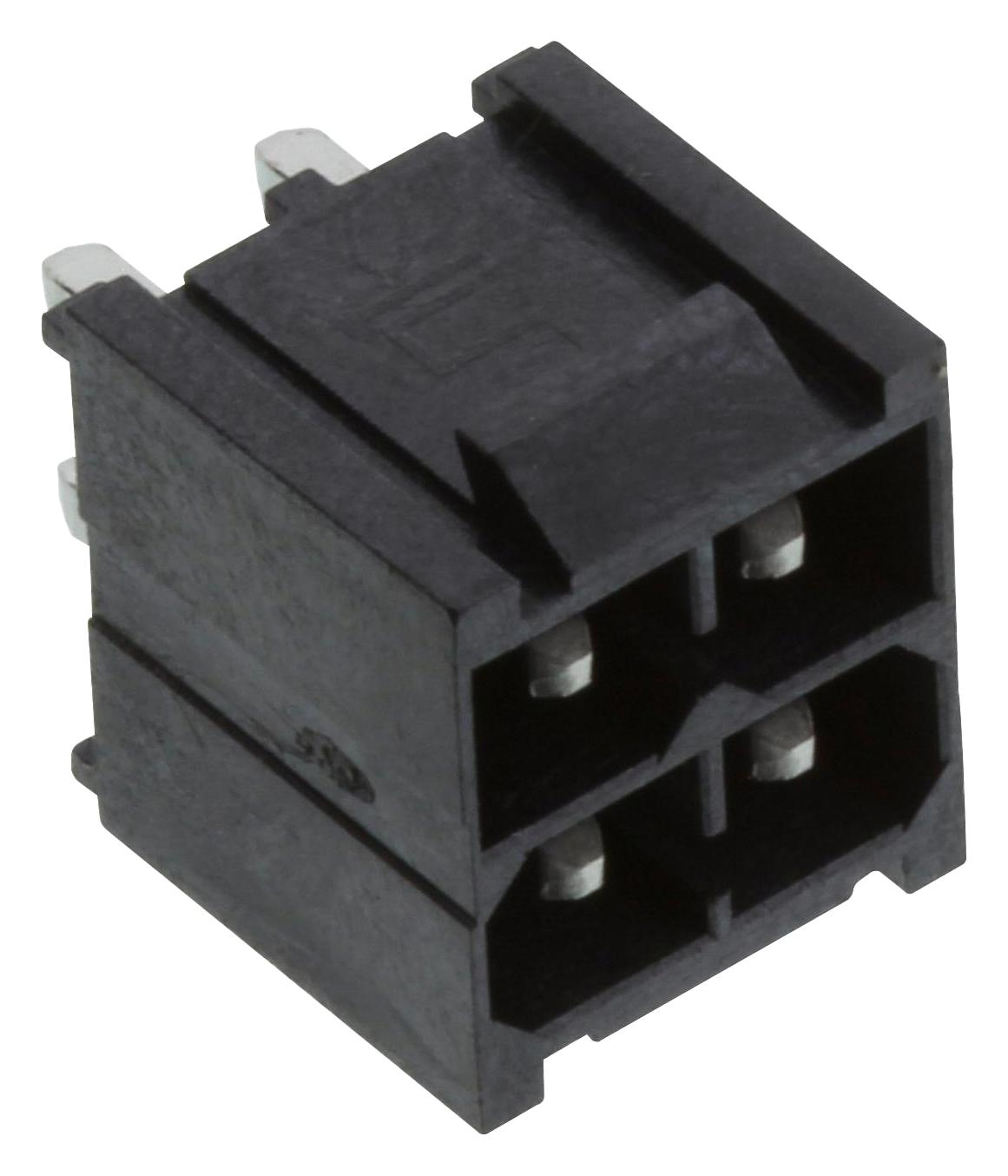

Buy the Samtec Series Power Header: IPBT-105-H2-T-D-K
Secure your power distribution system with the Samtec Power Header. Featuring robust construction, polarized guides, and shrouded contacts, this header ensures safe and accurate connections in various industrial and electronic applications. With a voltage rating of 400 VAC/565 VDC and a temperature range from -55°C to +105°C, it supports multiple configurations including different heights, lead styles, and optional post holes. Trust Samtec’s quality for durable, high-performance terminal solutions that meet industry standards for safety and reliability.
Buy Samtec IPBT-105-H2-T-D-K now and experience unmatched reliability and performance with durable contact construction and versatile configuration options.
Frequently Asked Questions
Where can I buy SAMTEC IPBT104H2TDK?
You can click on the BUY or RFQ button to purchase IPBT104H2TDK from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part IPBT104H2TDK?
You can download the IPBT104H2TDK datasheet or visit the SAMTEC website for support.
Who is the manufacturer of IPBT104H2TDK?
SAMTEC
