SAMTEC IPL110201SDK SMT Power & Signal Connector
The IPL1 series features high-quality natural LCP insulators with phosphor bronze terminals plated in Sn or Au over Ni, rated for 675 VAC/954 VDC. Designed for SMT applications, these connectors support lead-free soldering with coplanarity up to 0.006 inches. The series includes various sizes, polarizations, and configurations such as single and double row, with or without guide posts and weld tabs. Ideal for precise, reliable connections in power and signal applications, they offer excellent temperature stability and processing flexibility for demanding electronic assemblies.
SAMTEC IPL110201SDK SMT Power & Signal Connector Specifications:
- Insulator Material: Natural LCP
- Terminal Material: Phosphor Bronze
- Plating: Sn or Au over 50 μ" Ni
- Operating Temp Range: Not specified
- Voltage Rating: 675 VAC/954 VDC
- Lead-Free Solderable: Yes
- SMT Lead Coplanarity: Max 0.006 inches (0.15 mm)
- Number of Positions: Varies with model, e.g., 2, 3, 4, 5, 6, 8, 10, 12, 15, 16, 20, 25
- Configurations: Single and double row, with or without guide post holes, polarization options
- Processing: Compatible with stencil solutions, optional guide post holes, various lengths
- Other features: Weld tab, non-standard options available, non-returnable if specified
- Operating Temp Range: Not explicitly provided but suitable for typical electronic applications

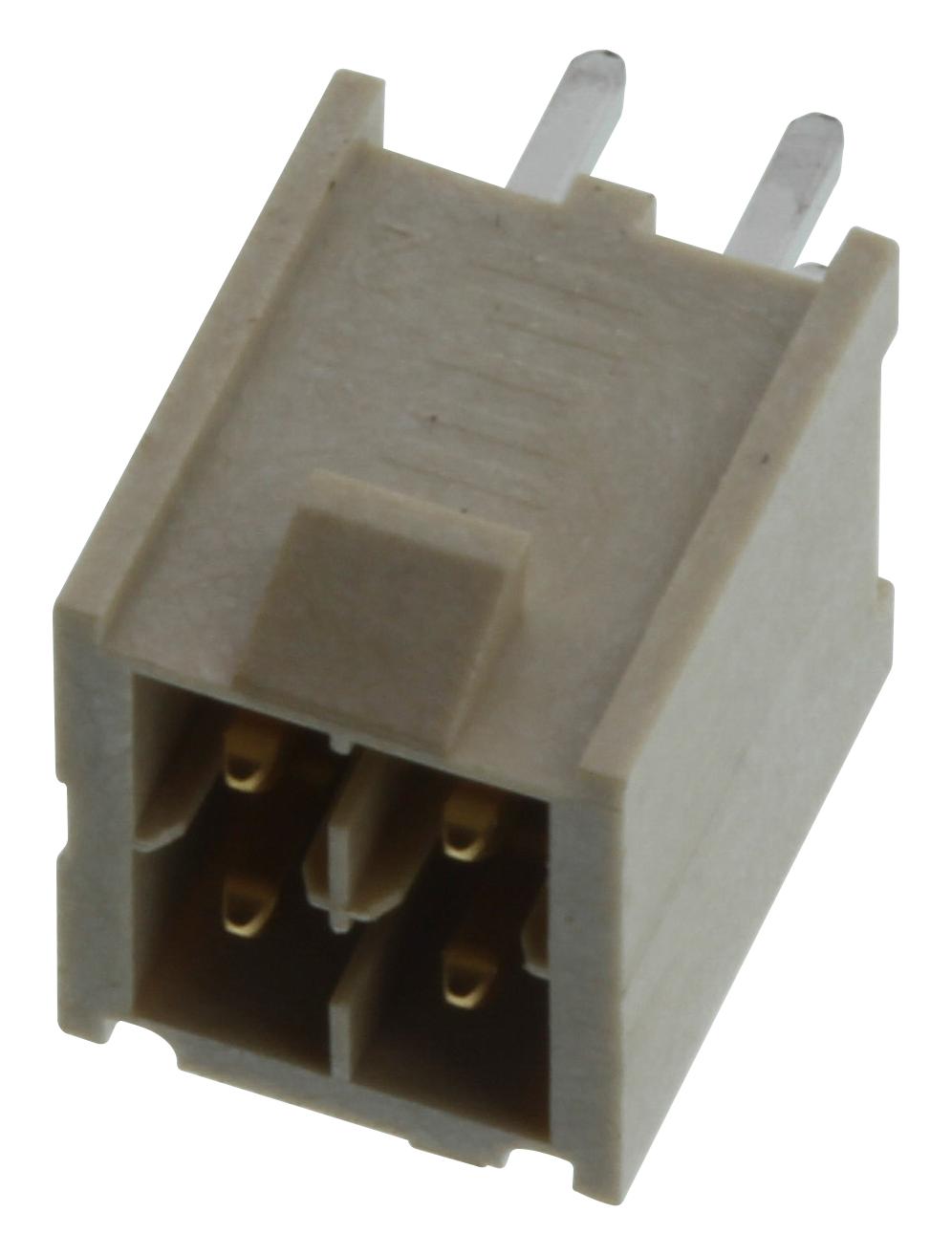

Buy the Samtec Series IPL1 High-Temperature SMT Connector: IPL110201SDK
Discover the reliability of the Samtec Series IPL1 SMT connectors, featuring high-quality natural LCP insulators and phosphor bronze terminals with optional gold or tin plating. Rated for 675 VAC/954 VDC, these connectors support lead-free soldering with coplanarity up to 0.006 inches, ensuring precise, stable connections across various applications. Available in multiple configurations including single or double row, with optional guide post holes and weld tabs, they are ideal for demanding electronics requiring durable, high-performance connections. Purchase online today for quick, trusted delivery.
Order your Samtec Series IPL1 high-temperature SMT connector today and ensure your electronic assemblies have a reliable, precision connection for demanding power and signal needs.
Frequently Asked Questions
Where can I buy SAMTEC IPL110201SDK?
You can click on the BUY or RFQ button to purchase IPL110201SDK from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part IPL110201SDK?
You can download the IPL110201SDK datasheet or visit the SAMTEC website for support.
Who is the manufacturer of IPL110201SDK?
SAMTEC
