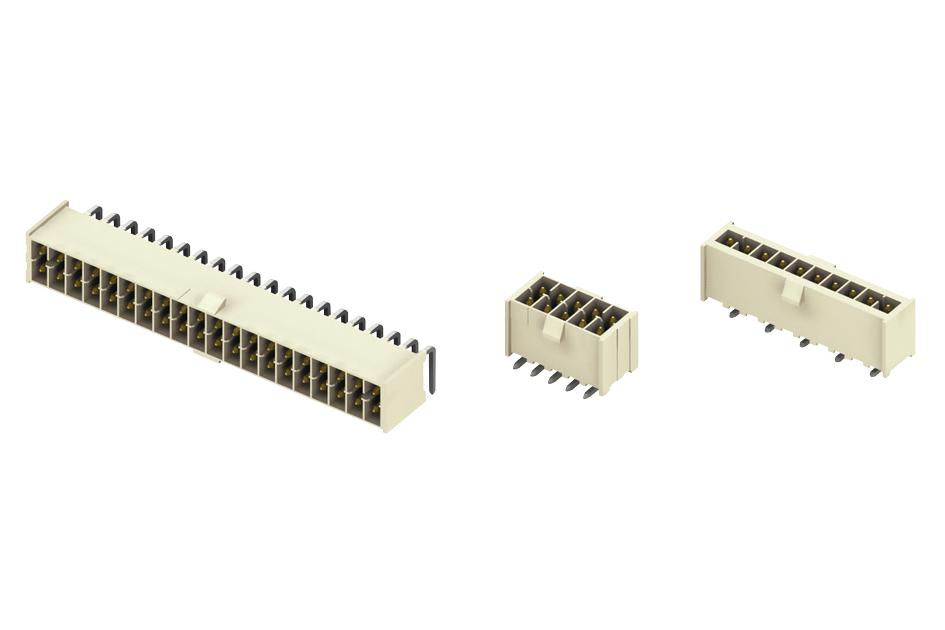

SAMTEC IPL110301LSRAK wire header
The IPL1 Series is a high-quality, discrete wire header designed for surface-mount, right-angle, and through-hole applications. Manufactured with natural LCP insulators and phosphor bronze terminals plated with Sn or Au over 50 µ
SAMTEC IPL110301LSRAK wire header Specifications:
- Insulator Material: Natural LCP
- Terminal Material: Phosphor Bronze
- Plating: Sn or Au over 50 µ" Ni
- Operating Temp Range: -55 °C to +125 °C
- Voltage Rating: 675 VAC/954 VDC
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Lead Style: S & -D with or without plug polarization
- Coplanarity (SMT): 0.10 mm max
- Guide post holes: Yes
- Other sizes available, with or without weld tab
- Mates with discrete wire cable assemblies, keying, and polarization options
- Suitable for surface mount, right-angle, elevated, and vertical through-hole mounting
- Some lengths and options are non-standard and non-returnable, see specifications for complete details.
Buy the Buy Samtec IPL1 Series Discrete Wire Header Part Number IPL110301LSRAK Online
Purchase your Samtec IPL1 IPL110301LSRAK wire header today for reliable, high-quality surface-mount and through-hole connections. Designed with natural LCP insulators and phosphor bronze terminals, these headers support operating temperatures from -55°C to +125°C and voltage ratings up to 675 VAC/954 VDC. RoHS compliant and lead-free, they are suitable for a wide range of electronic and industrial applications. Secure your supply chain by buying online now, ensuring prompt delivery of these versatile connectors crucial for your electronic projects and manufacturing needs.
Order your Samtec Series IPL1 IPL110301LSRAK today and enhance your wiring connections with dependable, RoHS-compliant headers for versatile mounting options.
Frequently Asked Questions
Where can I buy SAMTEC IPL110301LSRAK?
You can click on the BUY or RFQ button to purchase IPL110301LSRAK from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part IPL110301LSRAK?
You can download the IPL110301LSRAK datasheet or visit the SAMTEC website for support.
Who is the manufacturer of IPL110301LSRAK?
SAMTEC
