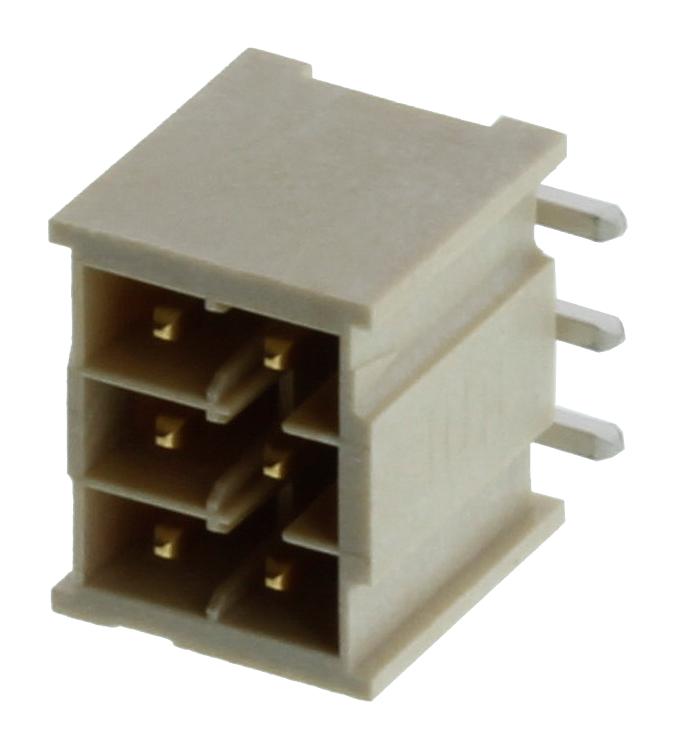

SAMTEC IPL110302LDK High-Density Pin Connector
The IPL110302LDK is a versatile high-density pin connector series designed for reliable electrical connections in demanding applications. Manufactured with natural LCP insulators and phosphor bronze terminals, it features options for gold or tin over nickel plating, ensuring excellent conductivity and corrosion resistance. Suitable for operating temperatures up to 675 VAC/954 VDC, these connectors support SMT lead coplanarity and optional polarized configurations. They are ideal for compact, multi-pin power and signal interfacing in electronic assemblies, with compatibility for tape and reel packaging, making them suitable for automated placement and high-volume manufacturing.
SAMTEC IPL110302LDK High-Density Pin Connector Specifications:
- Insulator Material: Natural LCP
- Terminal Material: Phosphor Bronze
- Plating: Sn or Au over 50 p" Ni
- Operating Temp Range: Not specified
- Voltage Rating: 675 VAC / 954 VDC
- Lead-Free Solderable: Yes (-02 and -D lead styles)
- SMT Lead Coplanarity: 0.18 mm max (02-25)
- Guide post holes: Available optionally
- Other sizes and polarizations: Available with or without plug polarization
- Process Compatibility: Tape & reel packaging, automatic placement
- Maximum Current: Not specified
- Size options: 2 to 25 positions, various layouts
- Additional features: Weld tab, non-standard options, and custom plating available
Buy the Buy Samtec IPL Series Connector Part Number IPL110302LDK Online
Enhance your electronic projects with the high-density pin connector series featuring natural LCP insulators and phosphor bronze terminals. Designed for SMT applications with excellent coplanarity and optional polarizations, these connectors support voltages up to 675 VAC and 954 VDC. Packaged in tape and reel for automated SMT assembly, they are ideal for power and signal connections in compact devices. Choose from various sizes, plating options, and custom features to suit your specific requirements. Order online now for fast delivery and reliable performance.
Order your Samtec IPL Series IPL110302LDK connector today and ensure reliable high-density connections for your electronic assemblies and automation projects.
Frequently Asked Questions
Where can I buy SAMTEC IPL110302LDK?
You can click on the BUY or RFQ button to purchase IPL110302LDK from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part IPL110302LDK?
You can download the IPL110302LDK datasheet or visit the SAMTEC website for support.
Who is the manufacturer of IPL110302LDK?
SAMTEC
