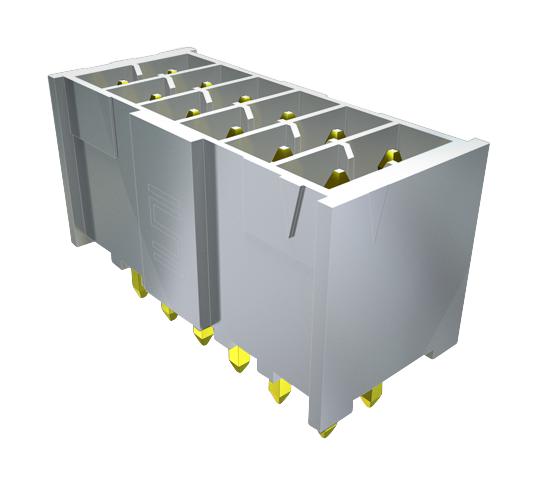

SAMTEC IPL110401LDK Discrete Wire Header
The IPL1 series offers discrete wire headers designed for surface mount, right-angle, and through-hole applications, featuring a 2.54 mm pitch. Made with natural LCP insulators and phosphor bronze terminals, these headers support voltage ratings up to 675 VAC and 954 VDC, operating reliably from -55 °C to +125 °C. They are RoHS compliant, lead-free, and suitable for various wire cable assemblies, with options for polarization, guide post holes, and different platings, ensuring versatile and durable connections in electronic systems.
SAMTEC IPL110401LDK Discrete Wire Header Specifications:
- Insulator Material: Natural LCP
- Terminal Material: Phosphor Bronze
- Plating: Sn or Au over 50 p" Ni
- Operating Temp Range: -55 °C to +125 °C
- Voltage Rating: 675 VAC/954 VDC
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Lead Style: S & -D, with options for plug polarization and guide post holes
- Mounting Options: Surface mount, right-angle, elevated, vertical through-hole
- Sizes Available: 02, 04, 06, 08, 10, 12, 15, 16, 20, 25 positions
- Coplanarity: Max 0.004" (0.10 mm) for SMT leads, max 0.006" (0.15 mm) for SH leads
- Certifications: Recognized quality standards, compliant with global regulations
Buy the Buy Samtec IPL1 Series Discrete Wire Header Part Number IPL110401LDK Online
Order the Samtec IPL1 series wire headers online today for high-quality, durable, and versatile electronic connections. Designed for surface mount and through-hole applications, these headers support a wide range of sizes and configurations. Made with natural LCP insulators and phosphor bronze terminals, they are RoHS compliant and lead-free, ensuring safety and environmental standards. Ideal for wire cable assemblies in various industrial and electronic systems, the IPL1 headers provide secure, reliable, and easy-to-install connections, enhancing your project's efficiency and durability.
Buy Samtec IPL1 series headers now and experience unmatched reliability and high-performance connections in your electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC IPL110401LDK?
You can click on the BUY or RFQ button to purchase IPL110401LDK from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part IPL110401LDK?
You can download the IPL110401LDK datasheet or visit the SAMTEC website for support.
Who is the manufacturer of IPL110401LDK?
SAMTEC
