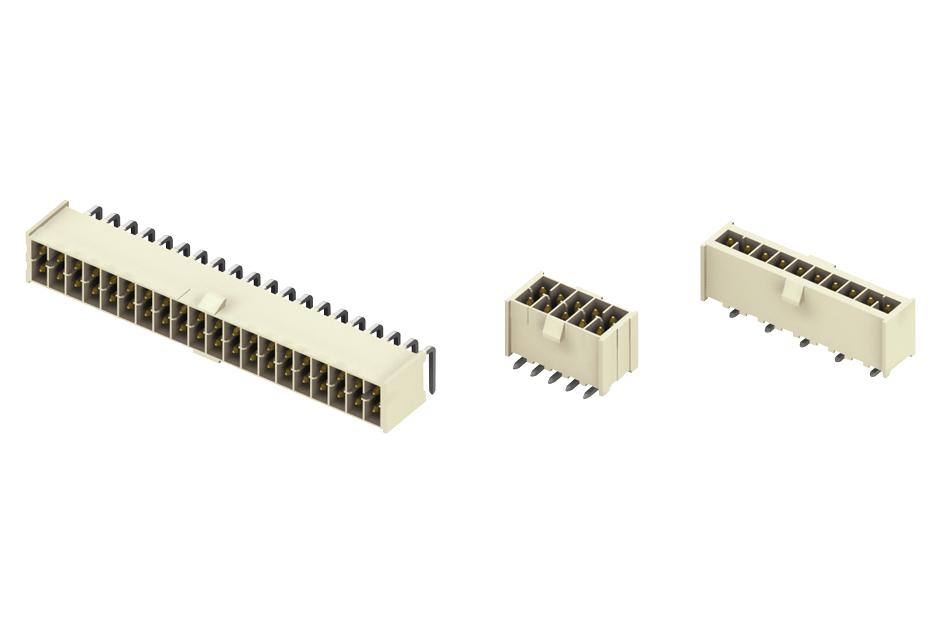

SAMTEC IPL110401LSK Discreet Wire Header
The IPL1 Series discreet wire header is a surface mount, right-angle, elevated, and through-hole connector designed for reliable connections in electronic assemblies. It features a natural LCP insulator, phosphor bronze contacts with Sn or Au plating over Ni, and supports operating temperatures from -55°C to +125°C. Rated at 675 VAC/954 VDC, this RoHS compliant component is suitable for a range of sizes, with options for guide post holes and polarized configurations, making it versatile for various PCB applications. Its robust design ensures durability and stable electrical performance in industrial and consumer electronics.
SAMTEC IPL110401LSK Discreet Wire Header Specifications:
- Insulator Material: Natural LCP
- Terminal Material: Phosphor Bronze
- Plating: Sn or Au over 50 µ" Ni (1.27 µm)
- Operating Temperature Range: -55°C to +125°C
- Voltage Rating: 675 VAC / 954 VDC
- RoHS Compliant: Yes
- Lead-Free Solderability: Yes
- Lead Style: S & -D (02 Lead Style)
- SMT Lead Coplanarity: 0.10 mm (0.004") max (02-05), 0.15 mm (0.006") max (11-25), with stencil options
- Configurations: Surface mount, right-angle, elevated, vertical through-hole
- Additional features: Guide post holes, polarization options, optional weld tab, various sizes and options available
- Application: Mating with discrete wire cable assemblies, suitable for reliable electrical connections in industrial electronics
Buy the Samtec Series IPL1 Discreet Wire Header: IPL110401LSK
Secure your electronic connections with the versatile Discreet Wire Header from Samtec. Designed for surface mount and through-hole applications, this high-quality connector features RoHS compliance, a wide operating temperature range, and various sizes for flexible usage. Its robust construction ensures durable and reliable electrical contact in industrial, medical, and consumer electronics. Order online today to enhance your electronics' performance with this dependable, easy-to-install component that meets strict quality standards for safety and durability.
Buy Samtec IPL110401LSK now and experience unmatched reliability and versatile connection options for your electronic assemblies.
