SAMTEC IPL110401LSRAK Connector
The IPL1 series connector offers reliable surface-mount and through-hole mounting options with various sizes and polarization features. Made with natural LCP insulators and phosphor bronze terminals plated with Sn or Au over Ni, it supports operating temperatures from 85°C to +125°C. Rated for 675 VAC and 954 VDC, this connector is RoHS compliant and suitable for discrete wire cable applications. It includes options for polarizations, guide post holes, weld tabs, and non-standard configurations, providing flexibility for diverse electronic assembly needs. Designed for durability and precision in high-performance electronic systems.
SAMTEC IPL110401LSRAK Connector Specifications:
- Insulator Material: Natural LCP
- Terminal Material: Phosphor Bronze
- Plating: Sn or Au over 50 μ" Ni
- Operating Temperature Range: 85°C to +125°C
- Voltage Rating: 675 VAC/954 VDC
- RoHS Compliant: Yes
- Processing: Lead-Free Solderable
- Lead Style: S & -D (-02 Lead Style)
- SMT Lead Coplanarity: 0.10 mm (.004") max (02-98), 0.13 mm (.005") max (06-10), 0.15 mm (.006") max (11-25)
- Surface Mount, Right Angle, Elevated and Vertical Through-hole designs
- Supports Polarization, Guide Post Holes, Weld Tabs, and Other Options
- Available sizes and configurations allow for flexible electronic assembly
- Dimensions and features are subject to change due to technological progress

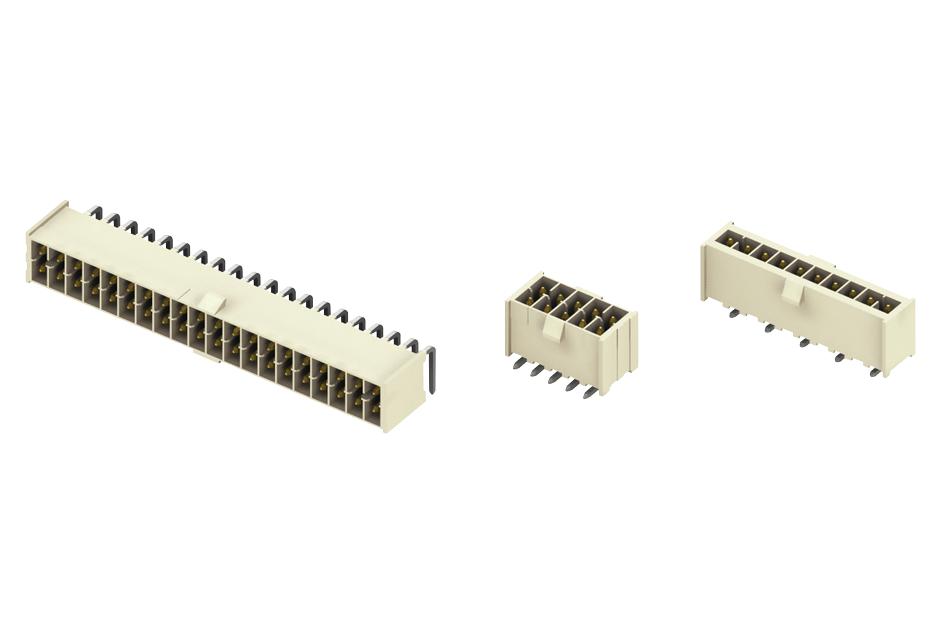

Buy the Samtec Series IPL1 Connectors: IPL110401LSRAK
Purchase the Samtec IPL110401LSRAK connector online today to ensure your electronic project benefits from high-quality construction, customizable options, and proven durability. Designed with natural LCP insulators and phosphor bronze terminals, it supports operating temperatures up to +125°C and voltage ratings up to 954 VDC. Suitable for surface-mount and through-hole applications, these connectors are RoHS compliant and feature various polarization and mounting options to meet diverse assembly requirements. Secure your supply chain with this reliable, precision-engineered connector now.
Get Samtec IPL110401LSRAK today—built for high reliability, versatile mounting options, and long-lasting durability in electronic systems.
Frequently Asked Questions
Where can I buy SAMTEC IPL110401LSRAK?
You can click on the BUY or RFQ button to purchase IPL110401LSRAK from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part IPL110401LSRAK?
You can download the IPL110401LSRAK datasheet or visit the SAMTEC website for support.
Who is the manufacturer of IPL110401LSRAK?
SAMTEC
