SAMTEC IPL110502LDK Wire Connector
The IPL1 series is a high-quality, surface-mount connector designed for discrete wire cable applications with polarization and RoHS compliance. Featuring natural LCP insulators and phosphor bronze terminals with optional Sn or Au plating over 50u
SAMTEC IPL110502LDK Wire Connector Specifications:
- Operating Temp Range: -55°C to +125°C
- Voltage Rating: 675 V AC/DC
- Insulator Material: Natural LCP
- Terminal Material: Phosphor Bronze
- Plating: Sn or Au over 50u" Ni
- Mounting Style: Surface Mount, Right Angle, Elevated
- Pin Count: 10, 12, 15, 16, 20, 25
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Lead Coplanarity: 0.15 mm max
- Polarization: Yes
- Dimensions: Lengths vary with options, typical size 6.08 to 9.58 mm
- Certifications: RoHS

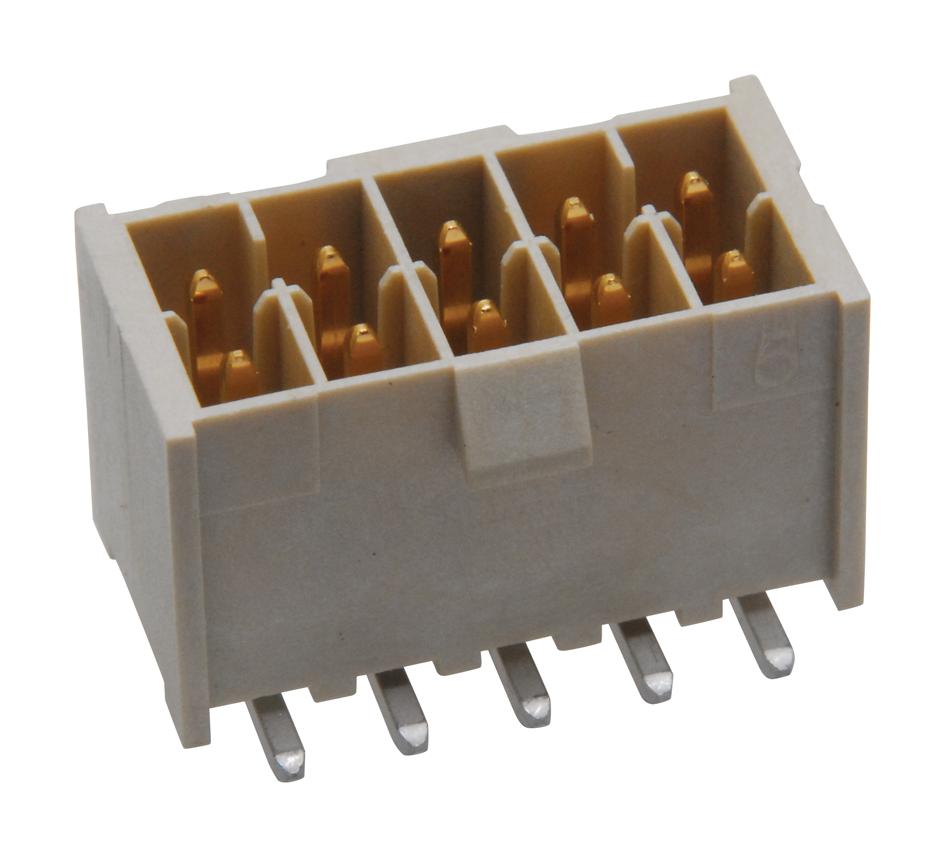

Buy the Buy Samtec IPL1 Series Part Number IPL110502LDK Online
Purchase the Samtec IPL1 series wire connector online today. Designed for discrete wire cable use with polarization and RoHS compliance, it features natural LCP insulators and phosphor bronze terminals with optional Sn or Au plating over Ni. It supports broad operating temperatures from -55°C to +125°C and offers reliable, solderable mounting options. Perfect for high-density electronic assemblies requiring secure connections, these connectors come in multiple pin counts and mounting styles, ensuring versatility and durability in demanding environments. Shop now to ensure quality and efficiency in your projects.
Get Samtec IPL110502LDK today—built for precision and long-lasting durability in high-density wire connector applications.
Frequently Asked Questions
Where can I buy SAMTEC IPL110502LDK?
You can click on the BUY or RFQ button to purchase IPL110502LDK from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part IPL110502LDK?
You can download the IPL110502LDK datasheet or visit the SAMTEC website for support.
Who is the manufacturer of IPL110502LDK?
SAMTEC
