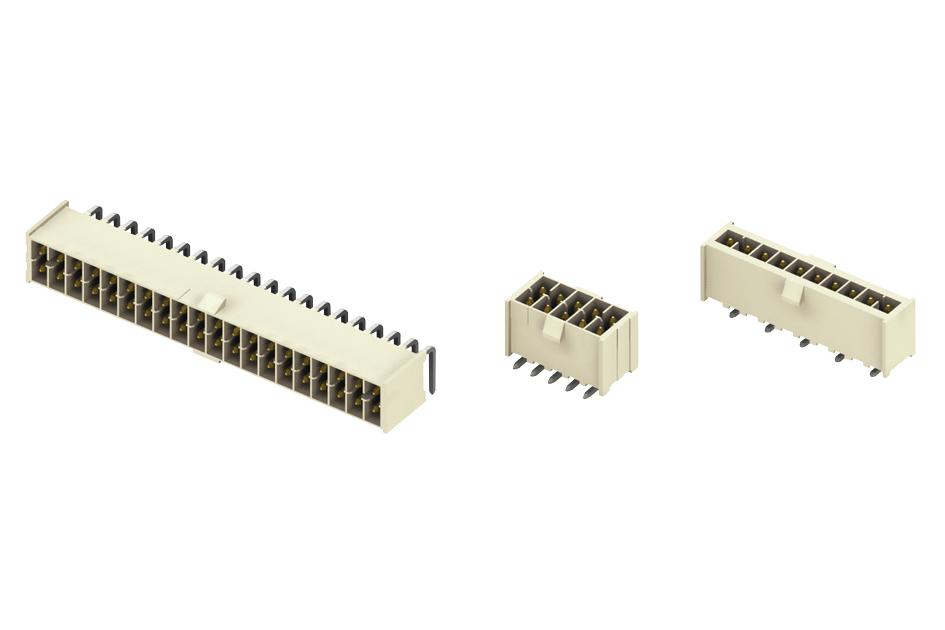

SAMTEC IPL110502LSHK Electrical Cable Connector
The IPL1 series by Samtec features high-quality, surface-mount or through-hole connectors with brass or phosphor bronze terminals, plated with tin or gold. Operating within -55°C to +125°C, these connectors handle voltages up to 675 V AC/DC and are RoHS compliant. They are suitable for discrete wire cable connections, offering various sizes, polarized options, and optional features such as guide post holes, weld tabs, and different plating finishes. Designed for reliable electrical performance in demanding industrial, electronic, and automation applications.
SAMTEC IPL110502LSHK Electrical Cable Connector Specifications:
- Operating Temp Range: -55°C to +125°C
- Voltage Rating: 675 V AC/DC
- Insulator Material: Natural Liquid Crystal Polymer (LCP)
- Terminal Material: Phosphor Bronze
- Plating: Sn or Au over Ni (50 μm)
- Lead-Free Solderable: Yes
- Mounting Style: Surface Mount or Through-Hole
- Lead Coplanarity: 0.15 mm (.006") max
- Number of Positions: Varies based on style
- RoHS Compliant: Yes
- Polarization: Yes, with optional guide post holes
- Sizes: Standard sizes 6.08 mm to 9.58 mm, other sizes available
- Additional Options: Weld tabs, plug options, various plating finishes
Buy the Samtec IPL1 Series – Reliable Electrical Connectors for Industrial Applications
Order the Samtec IPL1 series connectors online today to ensure your electronic and industrial projects benefit from high-quality, RoHS-compliant, and versatile cable connection solutions. Designed for reliability and efficiency, these connectors feature polarized body options, various sizes, and plated terminals with tin or gold finishes for optimal electrical performance. Whether you need surface-mount or through-hole mounting, the IPL1 series offers durability and flexibility. Secure your supply chain by purchasing these dependable connectors now for quick delivery and superior workmanship.
Buy Samtec IPL1 series connectors now and experience unmatched reliability, polarization options, and high-temperature performance for industrial applications.
Frequently Asked Questions
Where can I buy SAMTEC IPL110502LSHK?
You can click on the BUY or RFQ button to purchase IPL110502LSHK from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part IPL110502LSHK?
You can download the IPL110502LSHK datasheet or visit the SAMTEC website for support.
Who is the manufacturer of IPL110502LSHK?
SAMTEC
