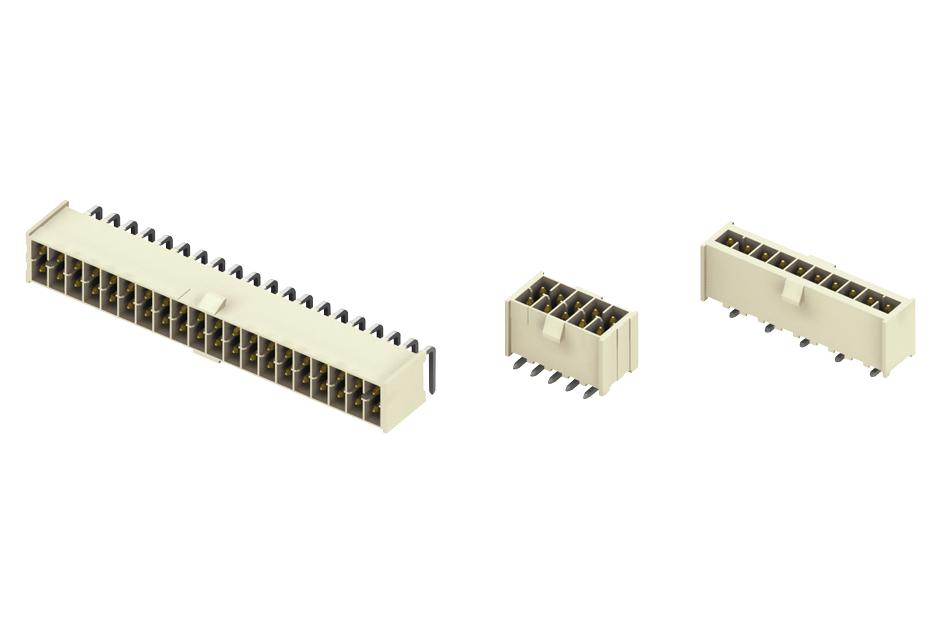

SAMTEC IPL111501LDK Power Terminal Strip
The IPL1-115-01-L-D-K is a compact 30-position, 2-row mini mate® power terminal strip with a 0.1-inch pitch, featuring gold-plated phosphor bronze contacts and a natural liquid crystal polymer (LCP) insulator. Designed for easy mating with compatible connectors such as IPD1 and MMS series, it includes individually shrouded contacts for safety and polarization for correct connections. Rated for 3.8A at 95°C with voltage capacities of 675VAC and 954VDC, this versatile terminal strip is ideal for industrial and electronic assembly applications requiring reliable power distribution.
SAMTEC IPL111501LDK Power Terminal Strip Specifications:
- Number of positions: 30
- Pitch: 0.1 inches
- Contact Material: Phosphor Bronze
- Plating: Gold over 50 µin Ni
- Insulator Material: Natural Liquid Crystal Polymer (LCP)
- Current Rating: 3.8A at 95°C
- Voltage Rating: 675VAC, 954VDC
- Operating Temperature: -55°C to +125°C
- Design includes polarized, individually shrouded contacts
- Compatible with IPD1 and MMS series connectors
- Lead-Free solderable, RoHS compliant
- Dimensions and mounting features aligned with industrial standards
Buy the Samtec Series Power Terminal: IPL1-115-01-L-D-K
Experience the reliable power distribution of the Samtec IPL1-115-01-L-D-K. This 30-position, 2-row mini mate® terminal strip features gold-plated phosphor bronze contacts and a durable liquid crystal polymer insulator, ensuring longevity in industrial environments. With a 0.1-inch pitch and polarized, shrouded contacts, it offers safe and easy mating with compatible connectors like IPD1 and MMS series. Rated for 3.8A at 95°C and voltage capacities of 675VAC and 954VDC, it ensures efficient, secure connections suitable for demanding electronic applications.
Get Samtec IPL1-115-01-L-D-K today—built for power reliability and secure industrial connections.
Frequently Asked Questions
Where can I buy SAMTEC IPL111501LDK?
You can click on the BUY or RFQ button to purchase IPL111501LDK from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part IPL111501LDK?
You can download the IPL111501LDK datasheet or visit the SAMTEC website for support.
Who is the manufacturer of IPL111501LDK?
SAMTEC
