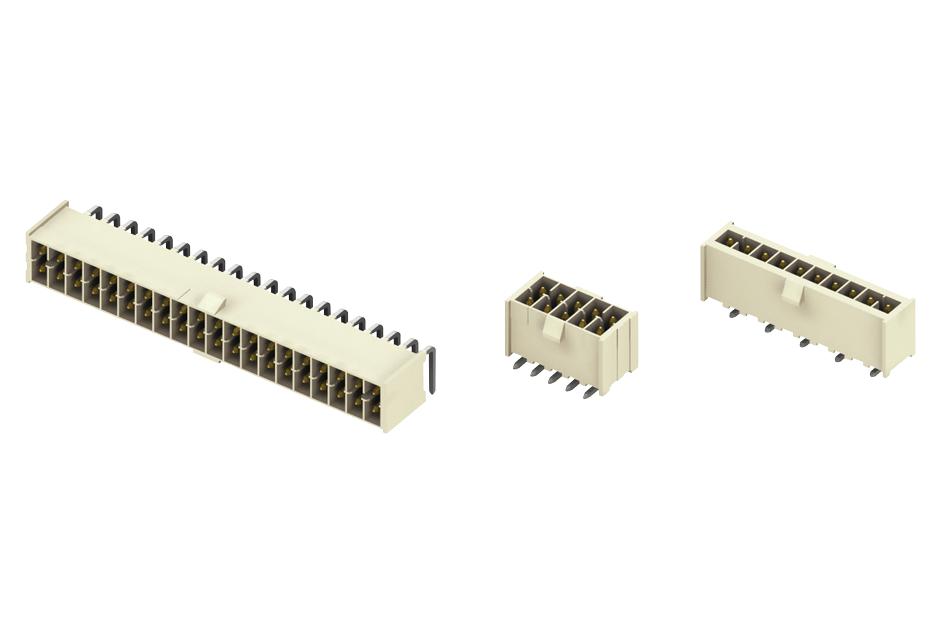

SAMTEC IPL112001LDK Electrical Connector
The IPL series is a versatile surface-mount connector designed for reliable electrical connections in industrial and electronic applications. Featuring natural LCP insulator material and phosphor bronze terminals with tin or gold plating over nickel, these connectors operate in temperatures from -55°C to +125°C and support voltages up to 675 V AC. With various pin counts and polarization options, they are RoHS compliant and enable lead-free soldering. Suitable for discrete wire cables, the IPL series offers high performance, durability, and customizable configurations to meet diverse engineering needs.
SAMTEC IPL112001LDK Electrical Connector Specifications:
- Insulator Material: Natural LCP
- Terminal Material: Phosphor Bronze
- Plating: Sn or Au over 50u" Ni
- Operating Temperature Range: -55°C to +125°C
- Voltage Rating: 675 VAC
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Mounting Style: Surface Mount, Right Angle
- Pin Counts: 10, 12, 15, 16, 20, 25
- Coplanarity (SMT): 0-19 mm, max 0.006"
- Lead Style: -02-S, -SH
- Polarization: Optional, guide post holes available
- Other Sizes and Options: Available upon request, non-standard sizes may require MOQ
Buy the Samtec IPL Series – Reliable Connectors for Industrial Applications
Discover the high-quality IPL series connector, designed for robust electrical connections in industrial and electronic applications. Featuring natural LCP insulator material and phosphor bronze terminals with optional gold or tin plating, these connectors support high temperatures from -55°C to +125°C and operate safely at voltages up to 675 V AC. They are RoHS compliant, lead-free, and compatible with surface mount technology, offering flexible pin counts and polarization options to suit various engineering requirements. Purchase online now for reliable performance and fast delivery.
Get Samtec IPL Series connector today—built for precision and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy SAMTEC IPL112001LDK?
You can click on the BUY or RFQ button to purchase IPL112001LDK from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part IPL112001LDK?
You can download the IPL112001LDK datasheet or visit the SAMTEC website for support.
Who is the manufacturer of IPL112001LDK?
SAMTEC
