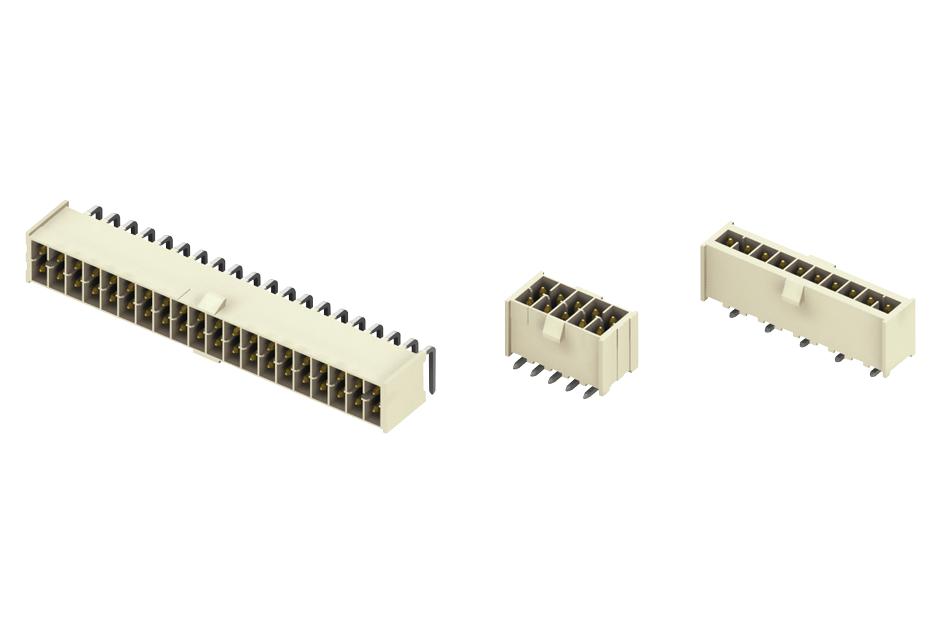

SAMTEC IPL112501LDK Insulated Terminal
The IPL1-105-02-L-D-K is a high-quality insulated terminal designed for reliable electrical connections in various industrial applications. Made from durable Nylon 66 insulator material and phosphor bronze terminals, it features tin or gold plating over nickel for corrosion resistance. Operating within -55°C to +125°C, it supports voltage ratings up to 675 VAC/DC. Suitable for 20-24 AWG wire sizes, this connector ensures precise fit, robust insulation, and compatibility with SMT soldering processes. It is RoHS compliant and recognized for excellent electrical performance and mechanical durability.
SAMTEC IPL112501LDK Insulated Terminal Specifications:
- Insulator Material: Nylon 66
- Terminal Material: Phosphor Bronze
- Plating: Sn or Au over 50
- Ni
- Operating Temperature: -55°C to +125°C
- Voltage Rating: 675 VAC/DC
- Wire Range: 20-24 AWG
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- SMT Lead Coplanarity: 0.10 mm to 0.15 mm
- Certifications: Recognized for electrical and mechanical reliability
- Design includes guide post holes and optional polarization features
Buy the Samtec IPL1-105-02-L-D-K – Reliable Insulated Electrical Terminal for Industrial Applications
Discover the high-performance IPL1-105-02-L-D-K insulated terminal designed for industry leaders demanding durability and precise electrical connections. Crafted from robust Nylon 66 insulator material and phosphor bronze contacts, it accommodates 20-24 AWG wires and supports temperatures from -55°C to +125°C. With a voltage rating up to 675 V, RoHS compliance, and lead-free solderability, this terminal offers outstanding electrical and mechanical reliability. Ideal for PCB mounting and wiring harnesses, it ensures a secure, corrosion-resistant connection for demanding industrial environments.
Buy Samtec IPL1-105-02-L-D-K now and experience unmatched reliability and performance in industrial electrical connections.
Frequently Asked Questions
Where can I buy SAMTEC IPL112501LDK?
You can click on the BUY or RFQ button to purchase IPL112501LDK from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part IPL112501LDK?
You can download the IPL112501LDK datasheet or visit the SAMTEC website for support.
Who is the manufacturer of IPL112501LDK?
SAMTEC
