SAMTEC IPS110501LD Electronic Connector
The IPS1 series is a versatile, high-performance electronic connector designed for reliable connections in industrial and electronic applications. It features individually shrouded contacts for enhanced electrical and mechanical protection, with options for surface mount or through-hole mounting. Made from black LCP insulator and phosphor bronze contacts, it offers a current rating up to 15.9A per contact and operates within a temperature range of -55°C to +125°C, ensuring durability in demanding environments. Its modular design supports various sizes and configurations for flexible integration into complex systems.
SAMTEC IPS110501LD Electronic Connector Specifications:
- Insulator Material: Black LCP
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over 1.27 μm Ni
- Operating Temperature Range: -55°C to +125°C
- Current Rating: 15.9A per contact
- Insertion Depth: 3.81 mm to 6.48 mm
- Ingress Protection: Individually shrouded contacts
- Voltage Rating: 098 VDC
- Insertion Force (T/H): 6.0 N (average)
- Withdrawal Force (T/H): 5.0 N (average)
- Surface Mount Coplanarity: 0.005-0.006 inches
- Dimensions: 4.70 mm (0.185 inches)
- Supported Sizes: 50 positions, other sizes available
- Mounting Options: Surface mount or through-hole
- Locking Option: Locking clip available
- Compliance: RoHS compliant, multiple sizes and configurations available

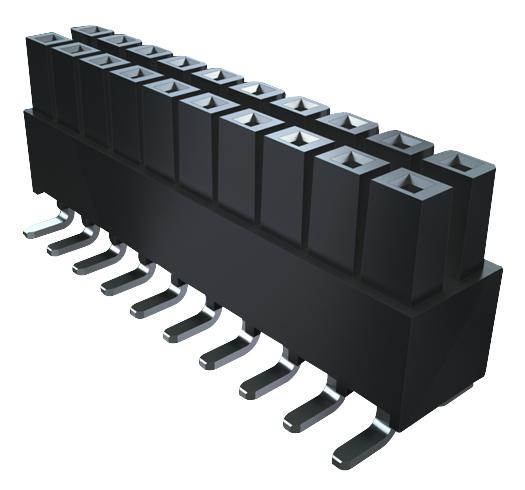

Buy the Samtec IPS1–120–01–L–D– Reliable Electronic Connector for Industrial Applications
Enhance your electronic projects with the high-quality, versatile connector from Samtec. Featuring individually shrouded contacts for maximum protection, it supports surface mount and through-hole mounting options. With a current rating up to 15.9A per contact and operating temperature range of -55°C to +125°C, this connector is suitable for demanding industrial and electronic applications. Its modular design allows for various sizes and configurations, providing flexible integration into complex systems. Secure your connections today with this reliable and durable connector.
Order your Samtec Series IPS1-125-01-L-D today and give your projects the dependable connectivity they deserve, ensuring secure, high-current connections in demanding industrial environments.
Frequently Asked Questions
Where can I buy SAMTEC IPS110501LD?
You can click on the BUY or RFQ button to purchase IPS110501LD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part IPS110501LD?
You can download the IPS110501LD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of IPS110501LD?
SAMTEC
