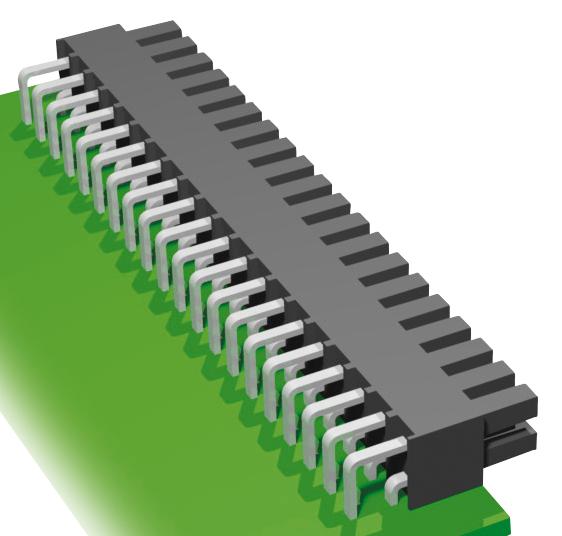

SAMTEC IPS110501LDRA High-density connector
The IPS1 series is a high-density, individually shrouded contact connector designed for electrical and mechanical protection, available in both through-hole and surface-mount options. It features phosphor bronze contacts with tin or gold plating over nickel, ensuring reliable performance from -55°C to +125°C. The contact system offers current ratings up to 15.9A, with an insertion depth of up to 0.255 inches, and is suitable for applications demanding precise contact retention, ease of assembly, and high durability in both industrial and electronic environments.
SAMTEC IPS110501LDRA High-density connector Specifications:
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over Ni
- Operating Temp Range: -55°C to +125°C
- Insertion Depth: up to 0.255 inches (6.48 mm)
- Current Rating: 15.9A
- Voltage Rating: 098 VDC
- Surface Mount and Through-Hole Options available
- Wiping Distance: 0.38 mm (0.015 inches)
- Insertion Force: 6.0 N (1.67 N) avg
- Withdrawal Force: 5.0 N (1.39 N) avg
- Contact Pitch: 2.54 mm (0.100 inch)
- Number of Positions: 50 to 100
- Individually Shrouded Contacts and optional locking clip
- Available in standard sizes with optional latching features
- Compliance: Recognized for quality and durability
Buy the Buy Samtec IPS1 Series Part Number IPS110501LDRA Online
Enhance your electronic and industrial projects with the high-density Samtec IPS1 connector series. Featuring individually shrouded contacts, gold or tin plating, and rated up to 15.9A, it offers excellent durability and reliable performance across a wide temperature range. Its compact design fits both surface-mount and through-hole applications, ensuring versatile installation and secure connections. Whether for complex electronics setups or industrial systems, this connector ensures stable connection integrity, ease of assembly, and long-lasting operation in demanding environments.
Order your Samtec SeriesIPS1 PartIPS110501LDRA today and ensure secure, reliable electrical connections with high current ratings and versatile mounting options.
Frequently Asked Questions
Where can I buy SAMTEC IPS110501LDRA?
You can click on the BUY or RFQ button to purchase IPS110501LDRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part IPS110501LDRA?
You can download the IPS110501LDRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of IPS110501LDRA?
SAMTEC
