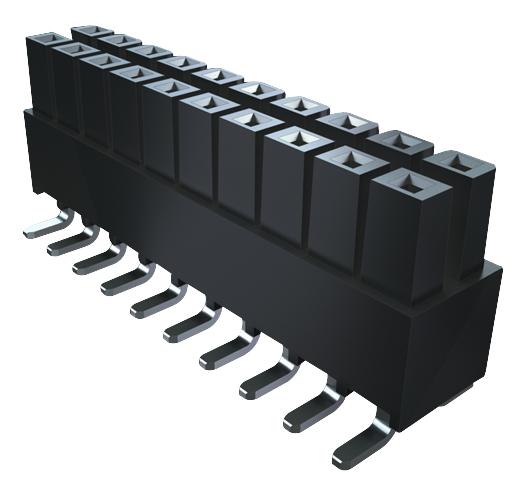

SAMTEC IPS111001LD High-density shrouded connector
The IPS1 series is a high-density, individually shrouded contact connector designed for precise electrical and mechanical protection. Suitable for both surface mount and through-hole mounting, it features black LCP insulators and phosphor bronze contacts plated with Sn or Au over Ni. Operating temperature ranges from 55°C to +105°C with Tin and up to +125°C with Gold, supporting current ratings up to 5.9A. The connector offers easy insertion, reliable retention, and optional locking clips, making it ideal for complex electronic assemblies requiring secure and durable connections.
SAMTEC IPS111001LD High-density shrouded connector Specifications:
- Insulator Material: Black LCP
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over Ni
- Operating Temp Range: 55°C to +105°C with Tin; 55°C to +125°C with Gold
- Current Rating: Up to 5.9A per contact
- Insertion Depth: 3.81 mm (.150") to 6.48 mm (.255")
- Wiping Distance: 0.38 mm (.015")
- Insertion Force (SMT): 6.0 N (1.67 N) avg
- Withdrawal Force (SMT): 5.0 N (1.39 N) avg
- Voltage Rating: 098 VDC
- Number of Positions: 50 to 100
- Mounting Options: Surface Mount and Through-Hole
- Dimensions: Length varies; standard sizes include 7.87 inches
- Additional features: Locking clip option, individually shrouded contacts
Buy the Buy Samtec IPS1 Series Part Number IPS111001LD Online
Purchase the Samtec IPS1 series IPS111001LD connector online today for your electronic assembly needs. This high-density, individually shrouded connector offers reliable electrical and mechanical protection with optional locking clips. Suitable for surface mount and through-hole mounting, it features durable phosphor bronze contacts with Sn or Au over Ni plating, supporting currents up to 5.9A and operating temperature ranges from 55°C to +125°C. Perfect for compact, high-reliability applications requiring durable and secure connections, available now for quick delivery.
Get Samtec IPS1 Series IPS111001LD today—designed for secure, reliable electrical connections with locking options and surface mount capability.
Frequently Asked Questions
Where can I buy SAMTEC IPS111001LD?
You can click on the BUY or RFQ button to purchase IPS111001LD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part IPS111001LD?
You can download the IPS111001LD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of IPS111001LD?
SAMTEC
