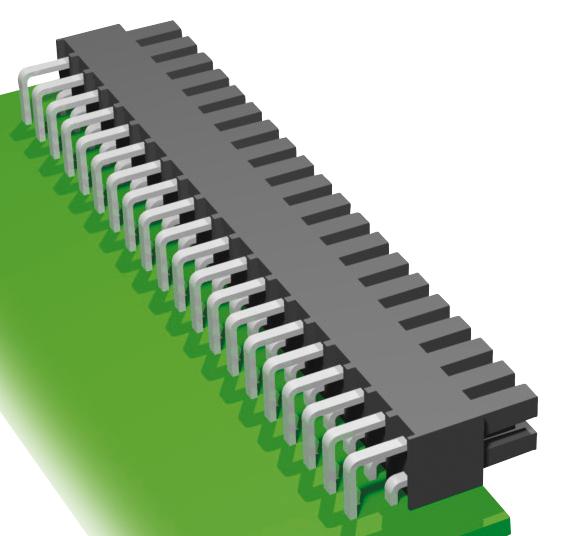

SAMTEC IPS111001LDRA High-Density Connector Module
The IPS1 series contact module features individually shrouded contacts for enhanced electrical and mechanical protection, suitable for high-density connector applications. Made from black LCP insulator material with phosphor bronze contacts, it offers both Sn and Au over Ni plating options, ensuring durability and corrosion resistance. Operating temperature ranges from 55°C to +125°C depending on plating. It supports various insertion depths, with an insertion force of approximately 6.0 N and withdrawal force of about 5.0 N, rated for up to 59VDC. The module is available in through-hole and surface-mount options with lockable configurations for secure connections.
SAMTEC IPS111001LDRA High-Density Connector Module Specifications:
- Insulator Material: Black Liquid Crystal Polymer (LCP)
- Contact Material: Phosphor Bronze
- Plating Options: Tin or Gold over Nickel
- Operating Temperature Range: -55°C to +125°C
- Current Rating: 15.9A to 48A depending on configuration
- Voltage Rating: 59VDC
- Insertion Depth: 3.81 mm (.150"), 4.70 mm (.185"), 6.48 mm (.255")
- Insertion Force: Approx. 6.0 N (average)
- Withdrawal Force: Approx. 5.0 N (average)
- Mounting: Through-Hole or Surface Mount with optional locking clip
- Contact pitch: 2.54 mm (0.100"), available in standard sizes
- Wiping Distance: 0.38 mm (.015")
- Compatibility: Configurable for right-angle or vertical mounting, options for polarized contacts
Buy the Samtec Series IPS1 High-Density Contact Module: IPS111001LDRA
Discover the durability and versatility of the Samtec Series IPS1 high-density contact module, designed with individually shrouded contacts for maximum protection. Made from robust black LCP and phosphor bronze, it supports a wide operating temperature range and high current ratings, suitable for demanding applications. Available in through-hole and surface-mount options, this module features locking clips for secure connections. Easy to install with standard pitch sizes, it ensures reliable performance in high-density electronic assemblies. Buy online today for quality and convenience.
Order your Samtec Series IPS1 high-density connector module today and ensure reliable, high-current electrical connections for your next project.
Frequently Asked Questions
Where can I buy SAMTEC IPS111001LDRA?
You can click on the BUY or RFQ button to purchase IPS111001LDRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part IPS111001LDRA?
You can download the IPS111001LDRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of IPS111001LDRA?
SAMTEC
