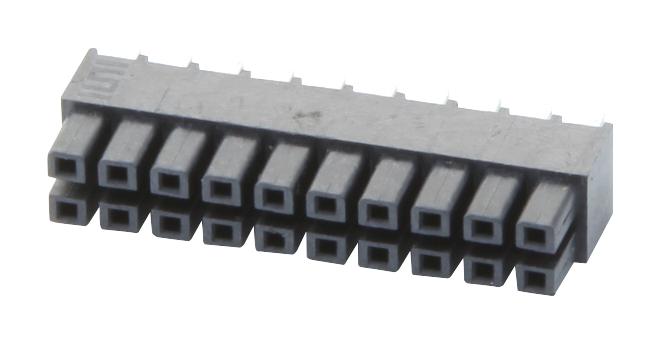

SAMTEC IPS111001SD High-Density Electrical Connector
The IPS1 series are high-density electrical connectors featuring individually shrouded contacts for enhanced electrical and mechanical protection. Designed for versatility, they are suitable for both surface mount and through-hole applications, accommodating a variety of sizes and plating options. These connectors boast a broad operating temperature range of -55°C to +125°C, with current ratings up to 15.9A per contact. With optional locking clips and polarized contacts, they provide reliable connections in demanding environments, ideal for industrial automation, control systems, and electronic devices requiring high-density interconnections.
SAMTEC IPS111001SD High-Density Electrical Connector Specifications:
- Contact Material: Phosphor Bronze
- Insulator Material: Black LCP
- Plating: Sn or Au over 1.27 µm Ni
- Operating Temp Range: -55°C to +125°C
- Current Rating: up to 15.9A per contact
- Insertion Depth: 0.150" to 0.255" (3.81 mm to 6.48 mm)
- Wiping Distance: 0.015" (0.38 mm)
- Insertion Force (SMT): 6.0 N (1.67 N) avg
- Withdrawal Force (SMT): 5.0 N (1.39 N) avg
- Voltage Rating: 98 VDC
- Number of Positions: 50, 100
- Sizes: Standard sizes, custom options available
- Processing: Solderable, lead coplanarity within 0.005" to 0.006"
- Features: Individually shrouded contacts, optional locking clip, polarized design
Buy the Buy Samtec IPS1 Series Connector Part Number IPS111001SD Online
Secure your high-density electrical connections by ordering the Samtec IPS1 Series connector IPS111001SD online today. This versatile connector offers individually shrouded contacts for added protection, suitable for surface mount and through-hole applications. With a broad operating temperature range and high current ratings, it is ideal for demanding industrial and electronic systems. Features include optional locking clips, polarized contacts, and easy solderability, making it a dependable choice for reliable and efficient electrical interconnections in various electronic, automation, and control projects.
Order your Samtec IPS1 Series IPS111001SD today and ensure high-density, reliable electrical connections with versatile compatibility options.
Frequently Asked Questions
Where can I buy SAMTEC IPS111001SD?
You can click on the BUY or RFQ button to purchase IPS111001SD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part IPS111001SD?
You can download the IPS111001SD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of IPS111001SD?
SAMTEC
