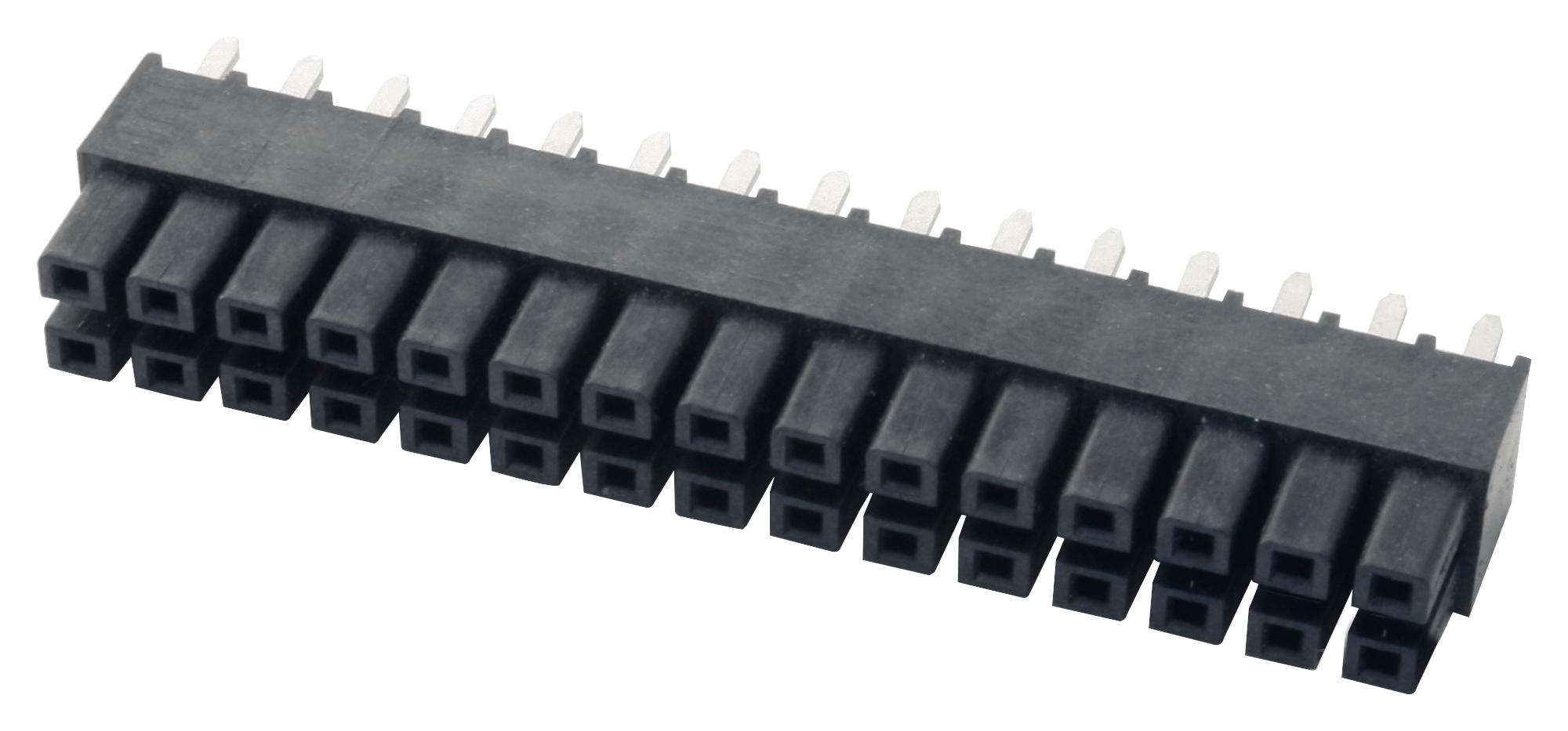

SAMTEC IPS111501SD Industrial Connector
The IPS1 series features individually shrouded contacts for enhanced electrical and mechanical protection, suitable for both surface mount and through-hole applications. Constructed with black LCP insulators and phosphor bronze contacts, these connectors are plated with either tin or gold over nickel, operating within -55°C to +105°C with tin and -55°C to +125°C with gold. They support voltage ratings up to 550 VAC/777 VDC, with current ratings ranging from 3.6A to 50A per contact. Designed for reliable electrical connection, they include features like a locking clip and optional polarization, ideal for complex industrial systems.
SAMTEC IPS111501SD Industrial Connector Specifications:
- Insulator Material: Black LCP
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over Ni
- Operating Temperature Range: -55°C to +125°C
- Voltage Rating: 550 VAC / 777 VDC
- Current Rating: 3.6A to 50A per contact
- Insertion Depth: 2.54 mm (.100") to 6.48 mm (.255")
- Wiping Distance: 0.38 mm (.015")
- Insertion Force (SMT): 3.0 oz (0.83 N)
- Withdrawal Force (SMT): 2.6 oz (0.72 N)
- Insertion Force (Through-Hole): 6.0 oz (1.67 N)
- Withdrawal Force (Through-Hole): 5.0 oz (1.39 N)
- RoHS Compliance: Yes
- Protection: Individually shrouded contacts with optional locking clip
- Size Options: Multiple sizes including 2,54 mm pitch
- Applications: Industrial electronics, automation, control systems
Buy the Samtec IPS1 – Reliable Industrial Connectors for Electronic Applications
Purchase Samtec IPS1 connectors online for durable, high-performance electrical connections suitable for automation, control systems, and industrial electronics. These connectors feature individually shrouded contacts, robust materials, and high voltage and current ratings, ensuring reliable performance in demanding environments. With optional locking clips and RoHS compliance, they are ideal for complex wiring and circuit configurations. Order now to benefit from fast shipping, extensive compatibility, and trusted quality from a leading manufacturer in electronic and industrial components.
Get Samtec IPS1 today—built for precision, durability, and versatile industrial connectivity solutions.
