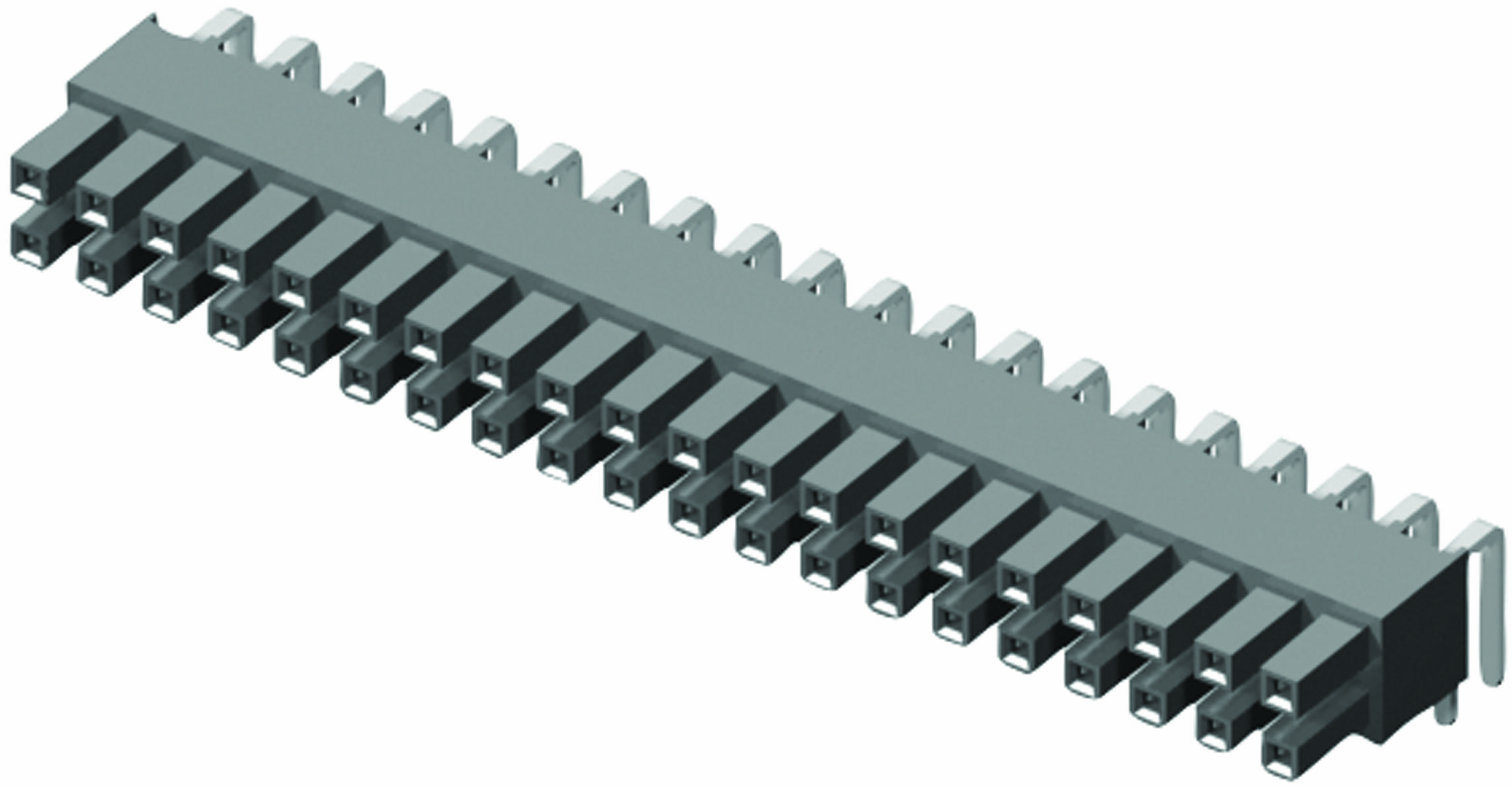

SAMTEC IPS111501SDRA High-Density Connector
The IPS1 series is a high-density, individually shrouded connector designed for reliable electrical and mechanical connection in both surface mount and through-hole applications. Featuring phosphor bronze contacts with optional Sn or Au plating, these connectors accommodate operating temperatures from 55°C to 125°C and ratings up to 15.9A per contact. With optional locking clips, precise insertion and withdrawal forces, and compatibility with a variety of sizes and configurations, the IPS1 series ensures secure, durable, and efficient connections for complex electronic assemblies.
SAMTEC IPS111501SDRA High-Density Connector Specifications:
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over Ni
- Operating Temp Range: -55°C to +125°C
- Current Rating: 15.9A per contact
- Voltage Rating: 098 VDC
- Insertion Depth: 3.81 mm (.150") to 6.48 mm (.255")
- Wiping Distance: 0.38 mm (.015")
- Insertion Force (SMT): 6.0 N (1.67 N) avg
- Withdrawal Force (SMT): 5.0 N (1.39 N) avg
- In-line Dimensions: 2.54 mm pitch, multiple sizes up to 100 positions
- Surface Mount and Through-Hole Compatibility
- Locking Clip Option Available
- Individually Shrouded Contacts for Mechanical and Electrical Protection
Buy the Samtec Series IPS1 High-Density Connector: IPS111501SDRA
Explore the convenience of purchasing the high-density connector online. The IPS1 series offers robust, individually shrouded contacts suitable for surface mount and through-hole applications. Rated up to 15.9A and with operating temperatures up to 125°C, these connectors deliver exceptional durability and performance. With optional locking clips and precise insertion and withdrawal forces, they ensure secure connections in complex electronic systems. Buy now to enhance your assembly reliability and streamline your electronic projects with quality, proven connectors.
Buy Samtec IPS111501SDRA high-density connectors now and experience reliable electrical connections with optional locking clips and excellent current capacity.
