SAMTEC IPS111501SDVS High-Current Connector
The IPS1 series is a versatile connector designed for both surface mount and through-hole applications, featuring individually shrouded contacts for enhanced electrical and mechanical protection. Made with black LCP insulator material and phosphor bronze contacts, it offers reliable performance with optional gold or tin plating, supporting operating temperatures from 55°C to 125°C. Its compact size, with a 2.54 mm pitch, includes a locking clip option and various sizes for different configurations, ideal for secure, high-current connections in demanding electronic environments.
SAMTEC IPS111501SDVS High-Current Connector Specifications:
- Insulator Material: Black LCP
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over Ni
- Operating Temp Range: 55°C to +125°C
- Current Rating: 15.9A (with Gold), 48A (with Tin)
- Insertion Depth: 0.150" to 0.255"
- Wiping Distance: 0.015"
- Insertion Force (T/H): 6.0 N (avg)
- Withdrawal Force (T/H): 5.0 N (avg)
- Voltage Rating: 098 VDC
- Physical: 2.54 mm pitch, sizes up to 100 positions
- Processing: Reflow, Tape-and-Reel packaging, surface mount or through-hole
- Features: Individually shrouded contacts, locking clip option, optional right angle version
- Certifications: See www.samtec.com/quality

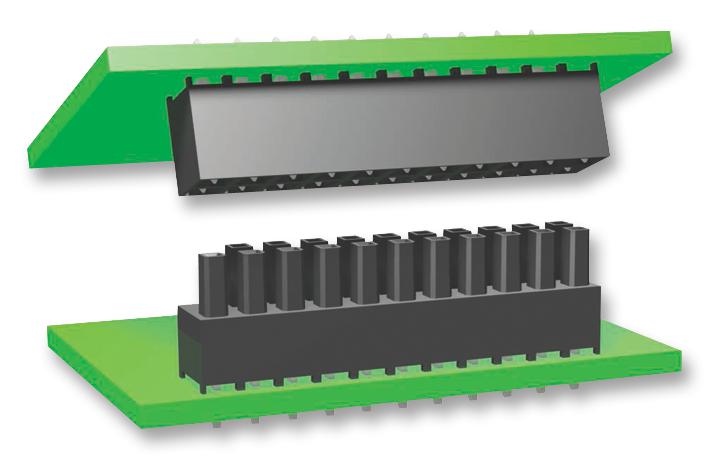

Buy the Buy Samtec IPS1 Series Part Number IPS111501SDVS Online
Purchase the Samtec IPS1 series connector online today for high reliability and flexible assembly options. Designed with individually shrouded contacts for electrical and mechanical protection, it supports current ratings up to 48A and operating temperatures up to 125°C. Suitable for surface mount and through-hole applications, this connector features options like locking clips and right-angle orientation. Its compact form factor with 2.54 mm pitch ensures secure connections in various electronic devices, making it a perfect choice for demanding industrial and consumer projects.
Buy Samtec IPS1 series connector with shrouded contacts now and experience reliable high-current performance in compact electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC IPS111501SDVS?
You can click on the BUY or RFQ button to purchase IPS111501SDVS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part IPS111501SDVS?
You can download the IPS111501SDVS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of IPS111501SDVS?
SAMTEC
