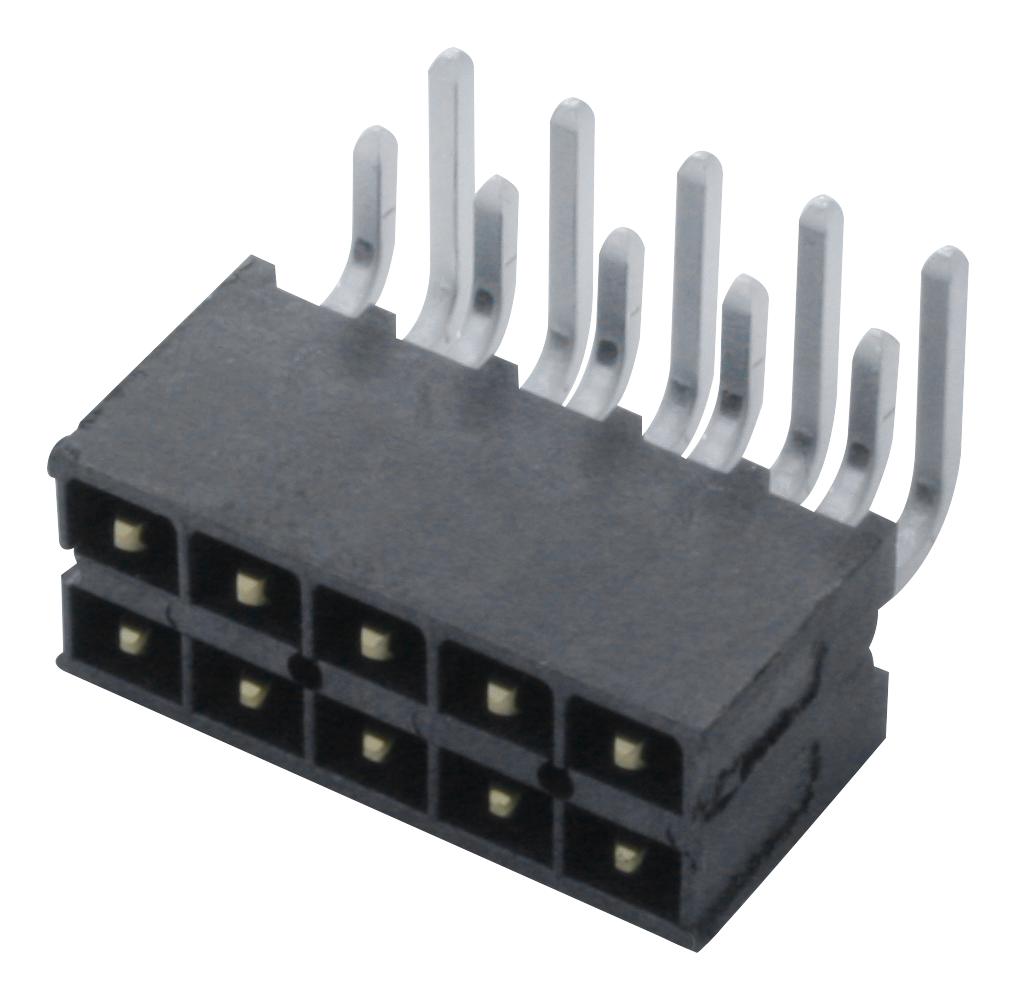

SAMTEC IPT110501SDRA Shrouded Pin Connector
The IPT1-110-01-L-D is a compact, individually shrouded pin connector designed for high-reliability electrical connections. Made with black LCP insulators and phosphor bronze contacts, it features Tin or Gold plating for enhanced corrosion resistance. Operating temperature ranges from -55°C to +125°C, supporting voltages up to 775 VAC/1095 VDC and current ratings up to 5.9A per contact. Suitable for SMT, through-hole, and right-angle mounting, it ensures optimal electrical performance and mechanical durability in demanding electronic applications.
SAMTEC IPT110501SDRA Shrouded Pin Connector Specifications:
- Insulator Material: Black LCP
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over 1.27 µm Ni
- Operating Temp Range: -55°C to +125°C
- Voltage Rating: 775 VAC/1095 VDC
- Current Rating: 5.9A per contact
- Insertion Force (SMT): 2.0 oz (0.83 N) avg.
- Withdrawal Force (SMT): 3.6A
- Insertion Force (T/H): 6.0 oz (1.67 N) avg.
- Withdrawal Force (T/H): 5.0 oz (1.39 N) avg.
- Wiping Distance: 0.38 mm (.015 inch)
- Max Lead Coplanarity: 0.13 mm (.005 inch)
- RoHS Compliant: Yes
- Mounting Options: SMT, through-hole, right angle
- Tolerance: Insertion depth 3.81 mm (.150 inch) to 6.48 mm (.255 inch)
Buy the Buy Samtec IPT1-110-01-L-D Part Number IPT110501SDRA Online
Order the Samtec IPT1-110-01-L-D shrouded pin connector today to ensure dependable electrical connections for demanding electronic projects. Designed with high-quality phosphor bronze contacts and optional gold or tin plating, it supports operating temperatures up to 125°C and voltage up to 1095 VDC. Perfect for SMT, through-hole, and right-angle mounting, it offers excellent force ratings and RoHS compliance. Enhance your assembly with this versatile, durable connector, available for immediate purchase online with quick shipping and excellent customer support.
Get Samtec IPT1-110-01-L-D today—built for high-reliability electrical connections with versatile mounting options and excellent temperature performance.
Frequently Asked Questions
Where can I buy SAMTEC IPT110501SDRA?
You can click on the BUY or RFQ button to purchase IPT110501SDRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part IPT110501SDRA?
You can download the IPT110501SDRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of IPT110501SDRA?
SAMTEC
