SAMTEC IPT111001LD Power Connector
The IPT1 Series shrouded power connectors are designed for high-current, high-voltage applications with robust insulation and precise contact materials. Made with black LCP insulators and phosphor bronze contacts, these connectors support both tin and gold plating options, operable within -55°C to +125°C, ensuring reliability across a wide temperature range. They feature insertion depths from 0.150" to 0.255", with a wiping distance of 0.015", and are RoHS compliant. Suitable for through-hole, right-angle, or surface mount configurations, providing versatile solutions for power and signal connections in industrial settings.
SAMTEC IPT111001LD Power Connector Specifications:
- Insulator Material: Black LCP
- Contact Material: Phosphor Bronze
- Plating: Sn or AU over 50 μ" Ni
- Operating Temp Range: -55 °C to +105 °C with Tin; -55 °C to +125 °C with Gold
- Insertion Depth: 0.150" to 0.255" (3.81 mm to 6.48 mm)
- Wiping Distance: 0.015" (0.38 mm)
- Voltage Rating: 775 VAC / 1095 VDC
- Standard Creepage: 0.098" (2.49 mm)
- Clearance: 0.075" (1.91 mm) without -LC, 0.036" (0.91 mm) with -LC
- RoHS Compliant: Yes
- Current Rating per contact: 5.9A (pin array size dependent)

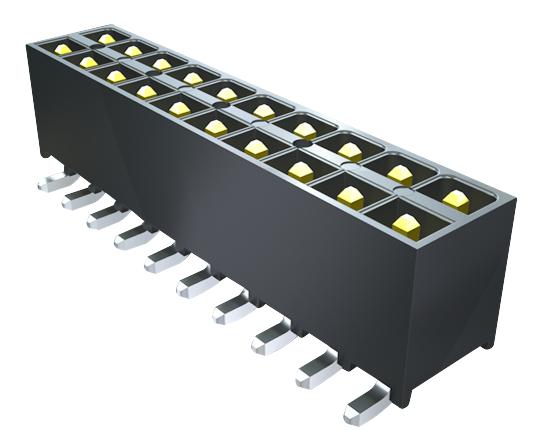

Buy the Samtec Series IPT1 Power Connector: IPT111001LD
Secure your current and signal connections with the high-quality Samtec Power Connector. Designed for versatility, this connector supports through-hole, right-angle, and surface mount options, with high current ratings up to 5.9A per contact. Made from durable materials like black LCP insulators and phosphor bronze contacts, it ensures reliable operation from -55°C to +125°C. Ideal for industrial and high-power applications, these connectors meet RoHS standards and are easy to install, providing safe, solid electrical connections in demanding environments.
Buy Samtec IPT111001LD power connector now and experience unmatched reliability and high-current performance for industrial applications.
Frequently Asked Questions
Where can I buy SAMTEC IPT111001LD?
You can click on the BUY or RFQ button to purchase IPT111001LD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part IPT111001LD?
You can download the IPT111001LD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of IPT111001LD?
SAMTEC
