SAMTEC IPT111001LDRA High-Density Connector
The IPT1-110-04-L-D is a high-performance, individually shrouded connector designed for versatile applications including through-hole and surface mount options. It features a black LCP insulator, phosphor bronze contacts, and optional gold or tin plating, ensuring excellent electrical conductivity and corrosion resistance. Operating across -55°C to +125°C, it supports high current ratings up to 15.9A per contact and voltage up to 775 VAC / 1095 VDC. Suitable for demanding industrial and electronic systems, the connector provides secure locking, with optional locking clips for enhanced reliability. RoHS compliant, it is ideal for robust, high-density circuit connections.
SAMTEC IPT111001LDRA High-Density Connector Specifications:
- Insulator Material: Black LCP
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over Ni (1.27 μm)
- Operating Temp Range: -55°C to +125°C
- Insertion Depth: 3.81 mm to 6.48 mm
- Current Rating: Up to 15.9A per contact
- Voltage Rating: 775 VAC / 1095 VDC
- Wiping Distance: 0.38 mm
- Insertion Force (SMT): 2.0 oz (0.83 N)
- Withdrawal Force (SMT): 2.6 oz (0.72 N)
- Insertion Force (Through-Hole): 6.0 oz (1.67 N)
- Withdrawal Force (Through-Hole): 5.0 oz (1.39 N)
- RoHS Compliant: Yes
- Typical Contact Pitch: 2.54 mm (.100")
- Other sizes and platings available
- Includes optional locking clip for secure connections

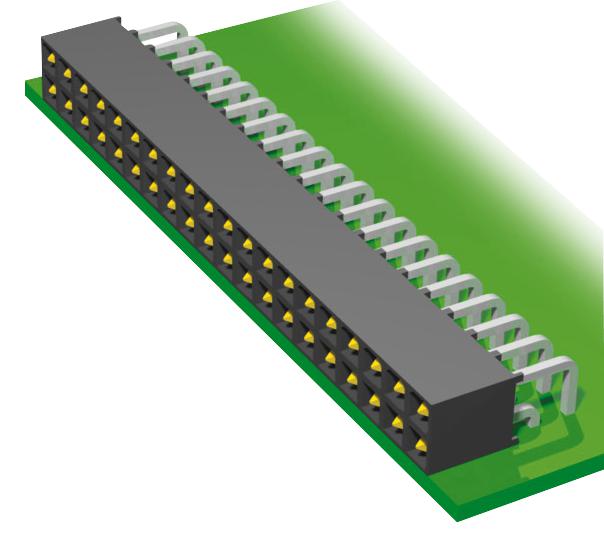

Buy the Buy Samtec IPT1-110-04-L-D Part Number IPT111001LD Online
Purchase the Samtec IPT1-110-04-L-D online today to ensure reliable, high-quality connections for your industrial and electronic applications. This connector features a durable black LCP insulator, phosphor bronze contacts with optional gold or tin plating, and supports high current ratings up to 15.9A per contact. It is RoHS compliant, suitable for both through-hole and surface mount mounting with a wide temperature range of -55°C to +125°C. Its secure locking options and versatile sizes make it an essential component for demanding systems requiring durability and precision. Order now for fast delivery and excellent performance.
Buy Samtec IPT1-110-04-L-D now and experience unmatched reliability and performance with high-current, versatile connector options for demanding systems.
Frequently Asked Questions
Where can I buy SAMTEC IPT111001LDRA?
You can click on the BUY or RFQ button to purchase IPT111001LDRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part IPT111001LDRA?
You can download the IPT111001LDRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of IPT111001LDRA?
SAMTEC
